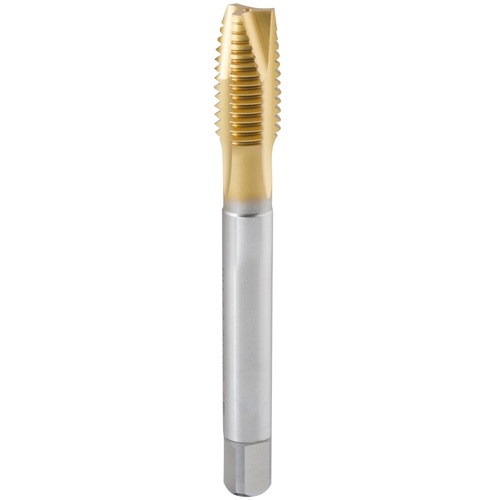

2153 M7/16X14 H5 TIN
Spiral Point Tap; 7/16″ - 14 ; 100 mm OAL ; 4 FL ; HSSE ; TIN ; H5 ; Series 2153
| Thread Standard | NC | Cutting Edge Material | HSSE |
| Thread Size | 7/16″ - 14 | Tool Type | DIN 376 |
| Thread Diameter Size (TDZ) | 7/16″ | Applicable Material | | Universal Materials | |
| Threads per Inch (TPI) | 14 | Connection Diameter Machine Side (DCONMS) | 8 mm |
| Thread Tolerance Class (TCTR) | H5 | Thread Cutting Part Length (THL) | 20 mm |
| Usable Length (LU) | 20 mm | Drive Size (DRVS) | 6.2 mm |
| Overall Length (OAL) | 100 mm | Cutting Direction (HAND) | Right Hand |
| Chamfer | Plug | Coolant Supply Property (CSP) | External |
| Coating | TIN | Measurement Type | Fractional |
| Flute Count (NOF) | 4 | Series/List # | 2153 |
Product Features
| Country of Origin | Hungary |
