F4047.B40.160.Z18.08

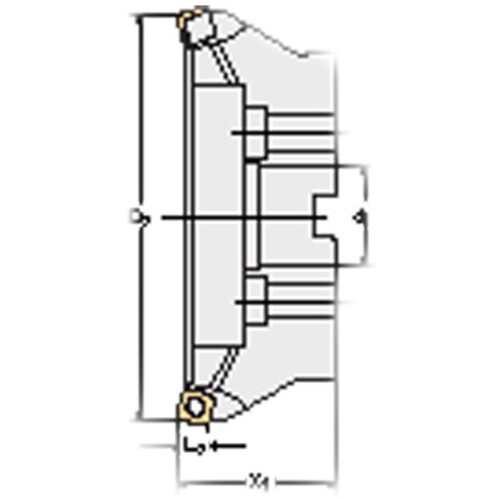

Indexable Face Mill; 160 mm Dia. × 40 mm Shank Dia. × 63 mm OAL × 8 mm Max Depth ; 18 Inserts ; 75 Degrees ; Series F4047
| Cutting Diameter (DC/DCX) | 160 mm | Overall Length (OAL) | 63 mm |
| Cutting Diameter (DC) | 157.943 mm | Arbor Style | Arbor Hole |
| Cutting Diameter Maximum (DCX) | 160 mm | Cutting Direction (HAND) | Right Hand |
| Cutting Item Count (CICT) | 18 | Tool Cutting Edge Angle (KAPR) | 75 Degrees |
| Depth of Cut Maximum (APMX) | 8 mm | Series/List # | F4047 |
| Connection Diameter Machine Side (DCONMS) | 40 mm |
Product Features
| Country of Origin | Germany |
Shipping Info
Package Weight
11.463
