F2330.UB38.102.Z06.02

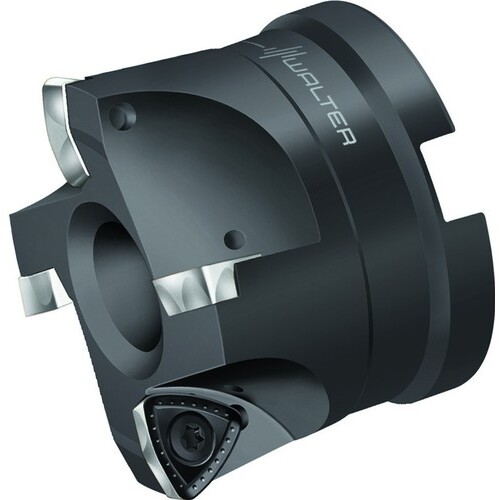

Indexable Face Mill; 81.61 mm Dia. × 1-1/2″ Shank Dia. × 63 mm OAL × 2 mm LOC ; 6 Inserts ; 15 Degrees ; Series F2330
Additional Tariff Surcharge of 8 %
| Cutting Diameter (DC/DCX) | 81.61 mm | Overall Length (OAL) | 63 mm |
| Cutting Diameter (DC) | 81.61 mm | Arbor Style | Arbor Hole |
| Cutting Diameter Maximum (DCX) | 81.61 mm | Cutting Direction (HAND) | Right Hand |
| Cutting Item Count (CICT) | 6 | Tool Cutting Edge Angle (KAPR) | 15 Degrees |
| Depth of Cut Maximum (APMX) | 2 mm | Series/List # | F2330 |
| Connection Diameter Machine Side (DCONMS) | 1-1/2″ |
Product Features
| Country of Origin | China |
Shipping Info
Package Weight
5.61
