2156 M18X2.5 D7 TICN

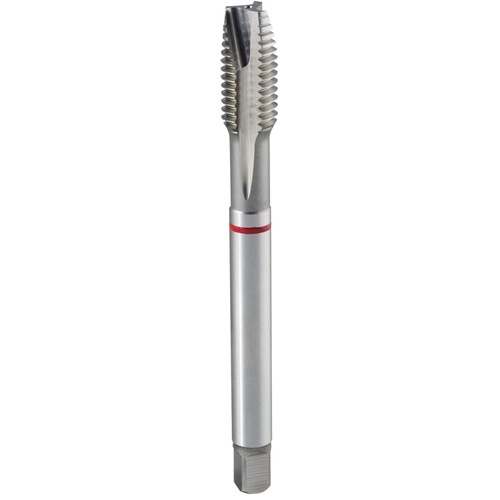

Spiral Point Tap; M18 × 2.5 mm ; 125 mm OAL ; 4 FL ; HSSE ; TICN ; D7 ; Series 2156
| Thread Standard | NC | Cutting Edge Material | HSSE |
| Thread Size | M18 × 2.5 | Tool Type | DIN 376 |
| Thread Diameter Size (TDZ) | M18 | Applicable Material | | Hard Materials | |
| Thread Pitch (TP) | 2.5 mm | Connection Diameter Machine Side (DCONMS) | 14 mm |
| Thread Tolerance Class (TCTR) | D7 | Thread Cutting Part Length (THL) | 30 mm |
| Usable Length (LU) | 30 mm | Drive Size (DRVS) | 11 mm |
| Overall Length (OAL) | 125 mm | Cutting Direction (HAND) | Right Hand |
| Chamfer | Plug | Coolant Supply Property (CSP) | External |
| Coating | TICN | Measurement Type | Metric |
| Flute Count (NOF) | 4 | Series/List # | 2156 |
Product Features
| Country of Origin | Hungary |
