2159 M14X1 D5 TIALN

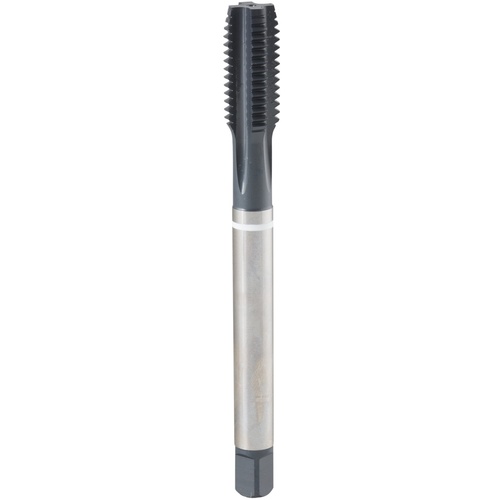

Straight Flute Tap; M14 × 1 mm ; 100 mm OAL ; 4 FL ; Powder Metal ; TiALN ; D5 ; Series 2159
| Thread Diameter Size (TDZ) | M14 | Thread Tolerance Class (TCTR) | D5 |
| Thread Pitch (TP) | 1 mm | Tool Type | DIN 374 |
| Overall Length (OAL) | 100 mm | Chamfer | Semi-Bottoming |
| Thread Cutting Part Length (THL) | 18 mm | Coating | TiALN |
| Usable Length (LU) | 18 mm | Drive Size (DRVS) | 9 mm |
| Connection Diameter Machine Side (DCONMS) | 11 mm | Coolant Supply Property (CSP) | External |
| Flute Count (NOF) | 4 | Series/List # | 2159 |
| Applicable Material | | Cast Iron | | Thread Size | M14 × 1 |
| Cutting Edge Material | Powder Metal |
Product Features
| Country of Origin | Hungary |
Shipping Info
Package Weight
0.015
