2153 M8X1 D5 TIN

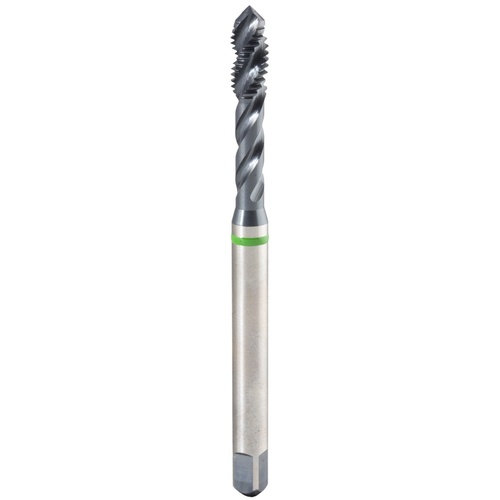

Spiral Flute Tap; M8 × 1 mm ; 90 mm OAL ; 3 FL ; HSSE ; TiN ; D5 ; Series 2153
| Thread Diameter Size (TDZ) | M8 | Cutting Edge Material | HSSE |
| Thread Pitch (TP) | 1 mm | Thread Tolerance Class (TCTR) | D5 |
| Overall Length (OAL) | 90 mm | Chamfer | Semi-Bottoming |
| Thread Cutting Part Length (THL) | 15 mm | Coating | TiN |
| Usable Length (LU) | 15 mm | Coolant Supply Property (CSP) | External |
| Connection Diameter Machine Side (DCONMS) | 6 mm | ToolTypeName | DIN 374 |
| Flute Count (NOF) | 3 | Series/List # | 2153 |
| Applicable Material | | Universal Materials | | Drive Size (DRVS) | 4.9 mm |
Product Features
| Country of Origin | Hungary |
