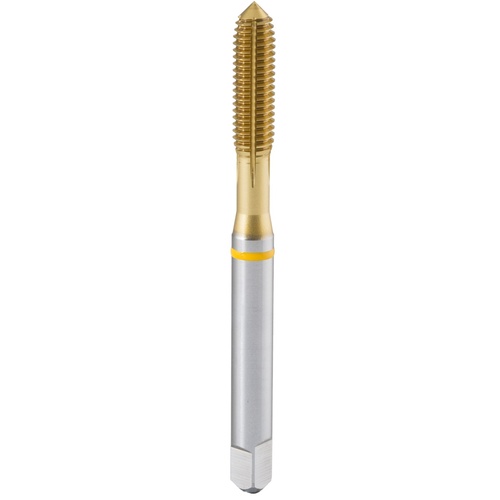

2151 M5X0.8 D7 FORM TIN
Forming Tap; M5 × 0.8 mm ; 70 mm OAL × 25 mm LU × 6 mm Shank Dia. ; Powder Metal ; TiN ; D7 ; Series 2151
| Tool Type | DIN 371 | Drive Size (DRVS) | 4.9 mm |
| Thread Diameter Size (TDZ) | M5 | Thread Tolerance Class (TCTR) | D7 |
| Thread Pitch (TP) | 0.8 mm | Applicable Material | | Universal Materials | |
| Overall Length (OAL) | 70 mm | Coating | TiN |
| Thread Cutting Part Length (THL) | 14 mm | Cutting Edge Material | Powder Metal |
| Usable Length (LU) | 25 mm | Series/List # | 2151 |
| Connection Diameter Machine Side (DCONMS) | 6 mm | Thread Size | M5 × 0.8 |
| Flute Count (NOF) | 5 |
Product Features
| Country of Origin | Hungary |
