F4042.B27.063.Z05.11

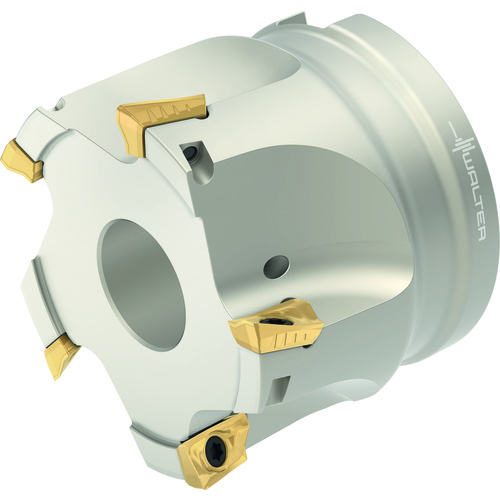

Indexable Face Mill; 63 mm Dia. × 27 mm Shank Dia. × 50 mm OAL × 11.7 mm LOC ; 5 Inserts ; 90 Degrees ; Series F4042
Additional Tariff Surcharge of 8 %
| Cutting Diameter (DC/DCX) | 63 mm | Overall Length (OAL) | 50 mm |
| Cutting Diameter (DC) | 61.4 mm | Arbor Style | Arbor Hole |
| Cutting Diameter Maximum (DCX) | 63 mm | Coolant Supply Property (CSP) | Coolant Thru |
| Cutting Item Count (CICT) | 5 | Cutting Direction (HAND) | Right Hand |
| Depth of Cut Maximum (APMX) | 11.7 mm | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Connection Diameter Machine Side (DCONMS) | 27 mm | Series/List # | F4042 |
Product Features
| Country of Origin | Turkey |
Shipping Info
Package Weight
1.634
