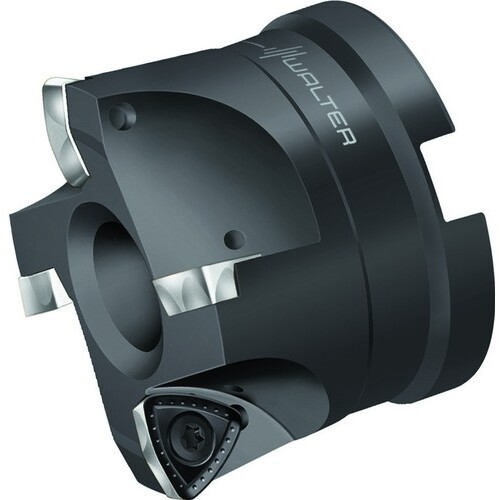

F2330.B22.063.Z05.01.5 High-Feed Face Milling Cutter
Indexable Face Mill; 49 mm Dia. × 22 mm Shank Dia. × 50 mm OAL × 1.5 mm LOC ; 5 Inserts ; 15 Degrees ; Series F2330
Additional Tariff Surcharge of 8 %
| Cutting Diameter (DC/DCX) | 49 mm | Overall Length (OAL) | 50 mm |
| Cutting Diameter (DC) | 49 mm | Arbor Style | Arbor Hole |
| Cutting Diameter Maximum (DCX) | 49 mm | Cutting Direction (HAND) | Right Hand |
| Cutting Item Count (CICT) | 5 | Tool Cutting Edge Angle (KAPR) | 15 Degrees |
| Depth of Cut Maximum (APMX) | 1.5 mm | Series/List # | F2330 |
| Connection Diameter Machine Side (DCONMS) | 22 mm |
Product Features
| Country of Origin | China |
Shipping Info
Package Weight
1.528
