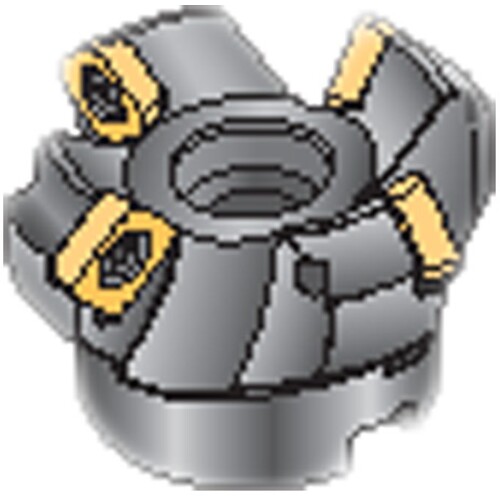

F2234.B.160.Z08.10 Copy Milling Cutter with round inserts
Indexable Face Mill; 160 mm Dia. × 40 mm Shank Dia. × 63 mm OAL × 10 mm Max Depth ; 8 Inserts ; Series F2234
| Cutting Diameter (DC/DCX) | 160 mm | Overall Length (OAL) | 63 mm |
| Cutting Diameter (DC) | 140 mm | Hub Diameter (DHUB) | 130 mm |
| Cutting Diameter Maximum (DCX) | 160 mm | Arbor Style | Arbor Hole |
| Cutting Item Count (CICT) | 8 | Cutting Direction (HAND) | Right Hand |
| Depth of Cut Maximum (APMX) | 10 mm | Series/List # | F2234 |
| Connection Diameter Machine Side (DCONMS) | 40 mm |
Product Features
| Country of Origin | Germany |
Shipping Info
Package Weight
10.573
