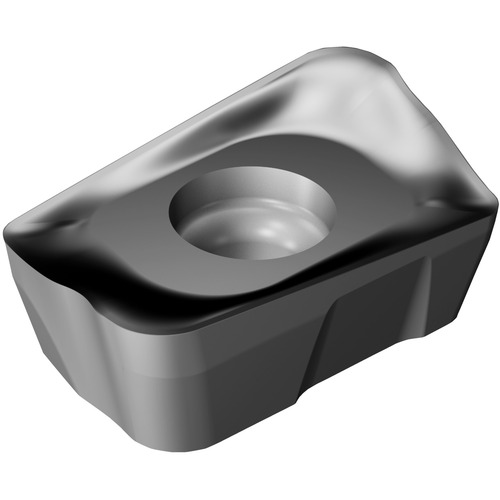

R390180612MKM 3040
Milling Insert; 15.4 mm Length × 11 mm Width × 6.33 mm Thickness ; 3040 ; Carbide ; | Al2O3 | TiC |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | | Coating | | Al2O3 | TiC | |
| Cutting Edge Length (L) | 15.4 mm | Grade | 3040 |
| Corner Radius (RE) | 1.2 mm | Shape | Rectangle |
| Insert Width (W1) | 11 mm | Insert Style | R390.18 06 12M-KM |
| Inscribed Circle Diameter (IC) | 18 mm | Cutting Direction (HAND) | Right Hand |
| Insert Thickness (S) | 6.33 mm | Hole Diameter | 4.15 mm |
| Insert Included Angle (EPSR) | 90 Degrees | Cutting Edge Material | Carbide |
Product Features
| Country of Origin | USA |
Shipping Info
Package Weight
0.3
