2XR0.3X20 2FL AE-CPR2-H

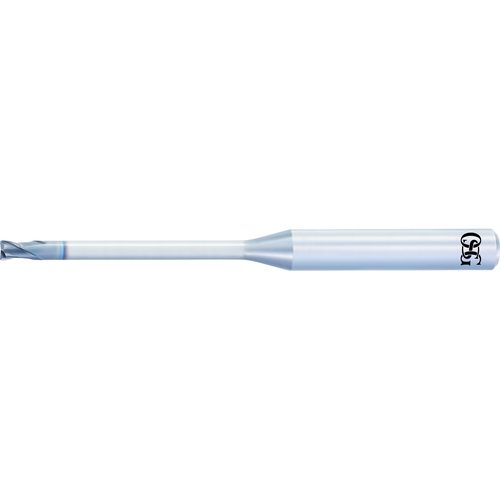

SQ End Mill; 2 mm Dia. × 1.6 mm LOC × 4 mm Shank Dia. × 60 mm OAL ; 0.3 mm RE ; 2 FL ; Carbide ; DUROREY ; Series 8594
| Cutting Diameter (DC) | 2 mm | Applicable Material | | Alloy Steel | Die Steel | Hardened Steel | |
| Connection Diameter Machine Side (DCONMS) | 4 mm | Neck Diameter (DN) | 20 mm |
| Depth of Cut Maximum (APMX) | 1.6 mm | Neck Length (LN) | 20 mm |
| Overall Length (OAL) | 60 mm | Tool Type | Solid Carbide Endmill |
| Cutting Edge Material | Carbide | Series/List # | 8594 |
| Coating | DUROREY | Corner Radius (RE) / Chamfer Width (CHW) | 0.3 mm |
| Flute Count (NOF) | 2 | Single / Double End | Single End |
| Flute Helix Angle (FHA) | 30 Degrees | Center Cutting | Non-Center Cutting |
| Shank Type | Straight | Cutting Diameter Tolerance | +0 / -0.015 |
| End Shape | Corner Radius | Shank Diameter Tolerance (TCDMM) | h4 |
Product Features
| Country of Origin | Japan |
Shipping Info
Package Weight
0.02
