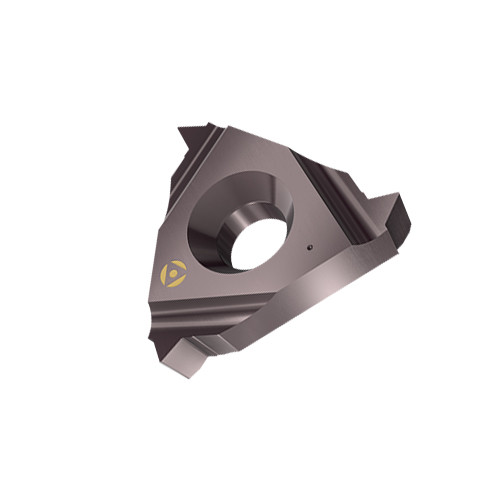

08IR 0.50ISO AC28A
Laydown Threading Insert ; 0.5 mm TP ; 0 TPI ; 0.324″ Length ; 0.197″ IC ; Carbide ; AC28A ; TiAlN
| Inscribed Circle Diameter (IC) | 0.197″ | Applicable Material | | Steel | Stainless Steel | Super-Alloys / Titanium | |
| Insert Length (INSL) | 0.324″ | Cutting Direction (HAND) | Right Hand |
| Thread Pitch (TP) | 0.5 mm | Threads per Inch Minimum (TPIN) | 0 |
| Threads per Inch (TPI) | 0 | Threads per Inch Maximum (TPIX) | 0 |
| Corner Radius (RE) | 0.0016″ | Measurement Type | Inch |
| Grade | AC28A | Body Material | Carbide |
| Coating | TiAlN | Number of Teeth | 0 |
| Cutting Edge Material | Carbide | Thread Form Type (THFT) | M60 |
| Application | | Internal Thread Milling | Internal Threading lay down | Threading Inserts | | Profile Distance EY (PDY) | 0.0236″ |
Product Features
| Family Description | Internal Right Hand ISO Metric (DIN13 12-1986 class 6H) Laydown Threading Inserts for General Industries | Country of Origin | Israel |
Shipping Info
Package Weight
0.004
