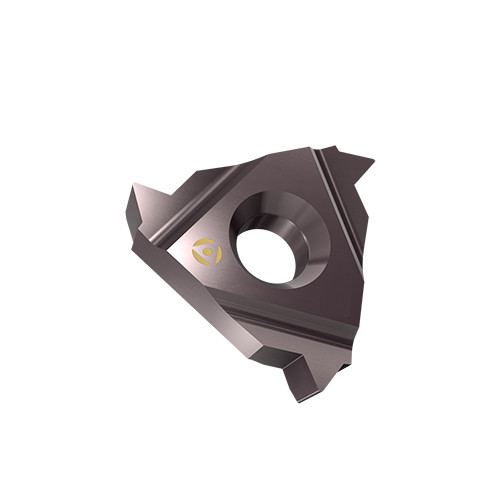

16ER 8LPT AC22C
Laydown Threading Insert ; 8 TPI ; 0.488″ Length ; 3/8″ IC ; Carbide ; AC22C ; TiAlN
| Inscribed Circle Diameter (IC) | 3/8″ | Cutting Direction (HAND) | Right Hand |
| Insert Length (INSL) | 0.488″ | Threads per Inch Minimum (TPIN) | 0 |
| Threads per Inch (TPI) | 8 | Threads per Inch Maximum (TPIX) | 0 |
| Corner Radius (RE) | 0.0041″ | Tool Type | Threading Regular Inserts |
| Grade | AC22C | Measurement Type | Inch |
| Coating | TiAlN | Body Material | Carbide |
| Cutting Edge Material | Carbide | Number of Teeth | 1 |
| Application | | Threading Inserts | | Thread Form Type (THFT) | LPT |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Profile Distance EY (PDY) | 0.047″ |
| Insert Style | Laydown (LT) |
Product Features
| Family Description | External Right Hand LPT (Line Pipe Taper) Threads Full Profile Laydown Inserts for Oil, Gas and Water Pipes | Country of Origin | USA |
Shipping Info
Package Weight
0.000
