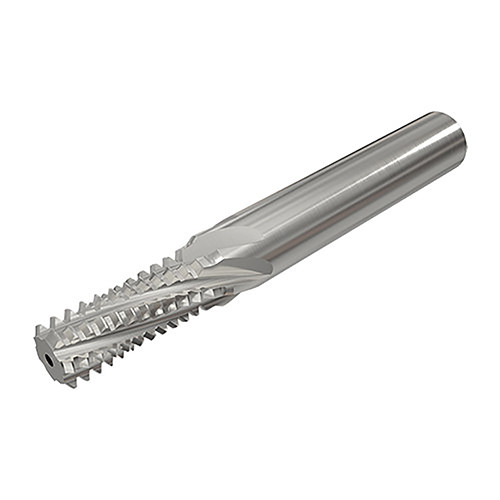

MTECBF 1616H38 11W AC22
Thread Mill; - - 11 ; 0.63″ Shank Dia. × 4.134″ OAL ; Carbide ; TiAlN ; AC22
| Thread Size | - | Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | |
| Threads per Inch (TPI) | 11 | Cutting Edge Material | Carbide |
| Connection Diameter Machine Side (DCONMS) | 0.63″ | Cutting Position | BOTH |
| Cutting Diameter (DC) | 0.63″ | Usable Length (LU) | 1.4528″ |
| Overall Length (OAL) | 4.134″ | Measurement Type | Inch |
| Flute Count (NOF) | 8 | Grade | AC22 |
| Coolant Supply Property (CSP) | Coolant Thru | Depth of Cut Maximum (APMX) | 1.4921″ |
| Shank Type | Round | Cutting Direction (HAND) | Right Hand |
| Coating | TiAlN | Body Material | Carbide |
| Application | | Internal Thread Milling | | Thread Form Type (THFT) | WH55 |
Product Features
| Family Description | Solid Carbide Internal or External Threading Endmills with a Coolant Hole. Intended for BSF/BSP Thread Profiles | Country of Origin | Israel |
Shipping Info
Package Weight
0
