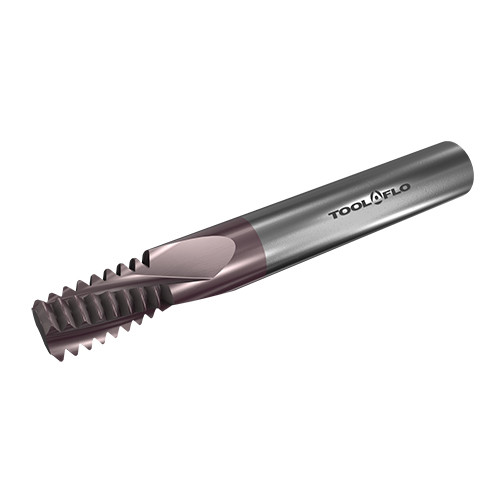

MTECH 06026C5 32UN AC222
Thread Mill; 6 × 0.794 mm - 32 ; 6 mm Shank Dia. × 58 mm OAL ; Carbide ; TiAlN ; AC222
| Thread Size | 6 | Application | | Internal Thread Milling | |
| Thread Pitch (TP) | 0.794 mm | Applicable Material | | Hard Materials | |
| Threads per Inch (TPI) | 32 | Cutting Edge Material | Carbide |
| Connection Diameter Machine Side (DCONMS) | 6 mm | Cutting Position | Internal |
| Cutting Diameter (DC) | 2.6 mm | Measurement Type | Metric |
| Overall Length (OAL) | 58 mm | Grade | AC222 |
| Flute Count (NOF) | 3 | Depth of Cut Maximum (APMX) | 6.7 mm |
| Shank Type | Round | Body Material | Carbide |
| Coating | TiAlN | Thread Form Type (THFT) | UN60 |
Product Features
| Family Description | Small Diameter Solid Carbide Internal UN Profile Threading and Chamfering Endmills, for Hard Materials up to 62 HRC, High Temperature Alloys and Titanium Alloys | Country of Origin | Israel |
