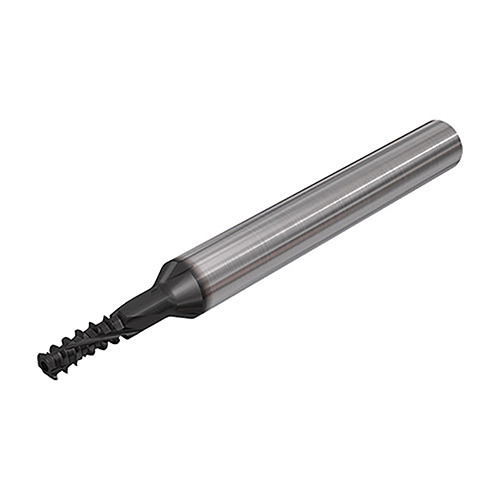

MTECK 08074D19 16UN AC22
Thread Mill; 3/8″ - 16 ; 0.315″ Shank Dia. × 2.52″ OAL ; Carbide ; TiAlN ; AC22
| Thread Size | 3/8″ | Cutting Edge Material | Carbide |
| Threads per Inch (TPI) | 16 | Cutting Position | Internal |
| Connection Diameter Machine Side (DCONMS) | 0.315″ | Usable Length (LU) | 0.7795″ |
| Cutting Diameter (DC) | 0.291″ | Measurement Type | Inch |
| Overall Length (OAL) | 2.52″ | Grade | AC22 |
| Flute Count (NOF) | 4 | Depth of Cut Maximum (APMX) | 0.7795″ |
| Shank Type | Round | Cutting Direction (HAND) | Right Hand |
| Coating | TiAlN | Body Material | Carbide |
| Application | | Internal Thread Milling | | Thread Form Type (THFT) | UN60 |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | |
Product Features
| Family Description | Solid Carbide Internal Threading Endmill Step Release, Lead x2 With Coolant Hole, Used for UN Thread Profile | Country of Origin | Israel |
