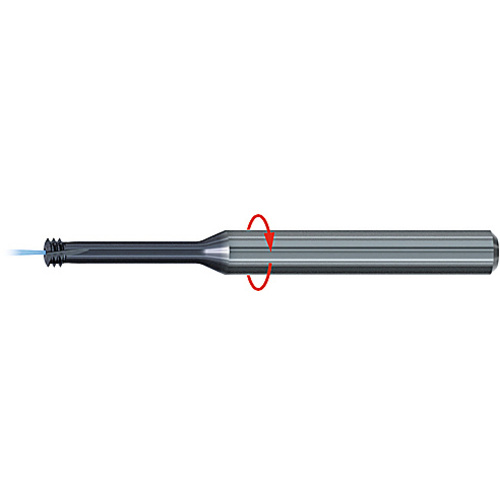

LK 5/8-18 UNF-BT 3XD THRD
| Thread Size | 5/8″-18 | Application | Thread Milling |
| Thread Pitch (TP) | 18 | Applicable Material | | Stainless | Steel | Titanium | Nickel Alloys | |
| Threads per Inch (TPI) | 18 | Cutting Edge Material | Carbide |
| Thread Standard | LK-UNF | Usable Length (LU) | 49.74 mm |
| Connection Diameter Machine Side (DCONMS) | 14 mm | Series/List # | Self-Lock |
| Cutting Diameter (DC) | 13.9 mm | Standard | DIN 6535 |
| Overall Length (OAL) | 98 mm | Length Group | 3XD |
| Flute Count (NOF) | 10 | Tool Type | Self-Lock THREADS-ALL / AERO |
| Coolant Supply Property (CSP) | Internal | Connection Code Machine Side (CCMS) | Cylindrical - HA |
| Coating | TiAlN-T73 |
Product Features
| Country of Origin | Germany |
Shipping Info
Package Weight
0.017
