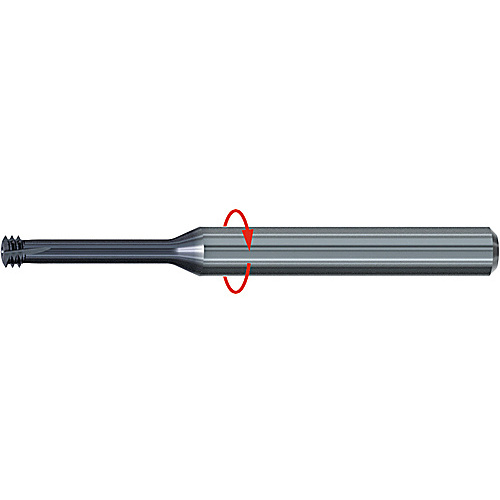

LK #6-40 UNF-BT 3XD THRD
| Thread Size | #6-40 | Application | Thread Milling |
| Thread Pitch (TP) | 40 | Applicable Material | | Stainless | Steel | Titanium | Nickel Alloys | |
| Threads per Inch (TPI) | 40 | Cutting Edge Material | Carbide |
| Thread Standard | LK-UNF | Usable Length (LU) | 11.47 mm |
| Connection Diameter Machine Side (DCONMS) | 3 mm | Series/List # | Self-Lock |
| Cutting Diameter (DC) | 2.79 mm | Standard | DIN 6535 |
| Overall Length (OAL) | 42 mm | Length Group | 3XD |
| Flute Count (NOF) | 6 | Tool Type | Self-Lock THREADS-ALL / AERO |
| Coolant Supply Property (CSP) | External | Connection Code Machine Side (CCMS) | Cylindrical - HA |
| Coating | TiAlN-T63 |
Product Features
| Country of Origin | Germany |
Shipping Info
Package Weight
0.008
