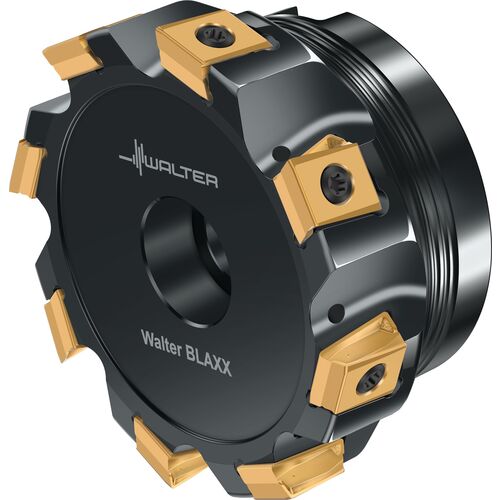

F5241.B32.100.Z08.15
Indexable Face Mill; 100 mm Dia. × 32 mm Shank Dia. × 50 mm OAL × 15 mm LOC ; 8 Inserts ; 90 Degrees ; Series F5241
Additional Tariff Surcharge of 8 %
| Cutting Diameter (DC/DCX) | 100 mm | Overall Length (OAL) | 50 mm |
| Cutting Diameter (DC) | 98.4 mm | Arbor Style | Arbor Hole |
| Cutting Diameter Maximum (DCX) | 100 mm | Cutting Direction (HAND) | Right Hand |
| Cutting Item Count (CICT) | 8 | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Depth of Cut Maximum (APMX) | 15 mm | Series/List # | F5241 |
| Connection Diameter Machine Side (DCONMS) | 32 mm |
Product Features
| Country of Origin | China |
Shipping Info
Package Weight
0
