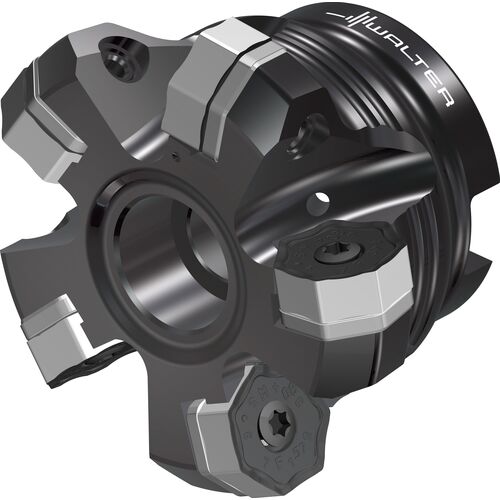

M3024-050-B22-05-04 Heptagon Face Milling Cutter
Indexable Face Mill; 50 mm Dia. × 22 mm Shank Dia. × 40 mm OAL × 4 mm LOC ; 5 Inserts ; 45 Degrees ; Series M3024
Additional Tariff Surcharge of 8 %
| Cutting Diameter (DC/DCX) | 50 mm | Overall Length (OAL) | 40 mm |
| Cutting Diameter (DC) | 49.3 mm | Arbor Style | Arbor Hole |
| Cutting Diameter Maximum (DCX) | 50 mm | Cutting Direction (HAND) | Right Hand |
| Cutting Item Count (CICT) | 5 | Tool Cutting Edge Angle (KAPR) | 45 Degrees |
| Depth of Cut Maximum (APMX) | 4 mm | Series/List # | M3024 |
| Connection Diameter Machine Side (DCONMS) | 22 mm |
Product Features
| Country of Origin | Turkey |
Shipping Info
Package Weight
1.323
