MEV 100R069TM Metric Bore Diameter, 90 Degree Face Mill
Indexable Face Mill; 100 mm Dia. × 32 mm Shank Dia. × 50 mm OAL × 6 mm LOC ; 9 Inserts ; 90 Degrees ; Series MEV
| Cutting Diameter (DC/DCX) | 100 mm | Ramping Angle Maximum (RMPX) | 0.5 Degrees |
| Cutting Diameter (DC) | 100 mm | Coolant Supply Property (CSP) | Coolant Thru |
| Cutting Diameter Maximum (DCX) | 100 mm | Body Material | Steel |
| Cutting Item Count (CICT) | 9 | Cutting Direction (HAND) | Right Hand |

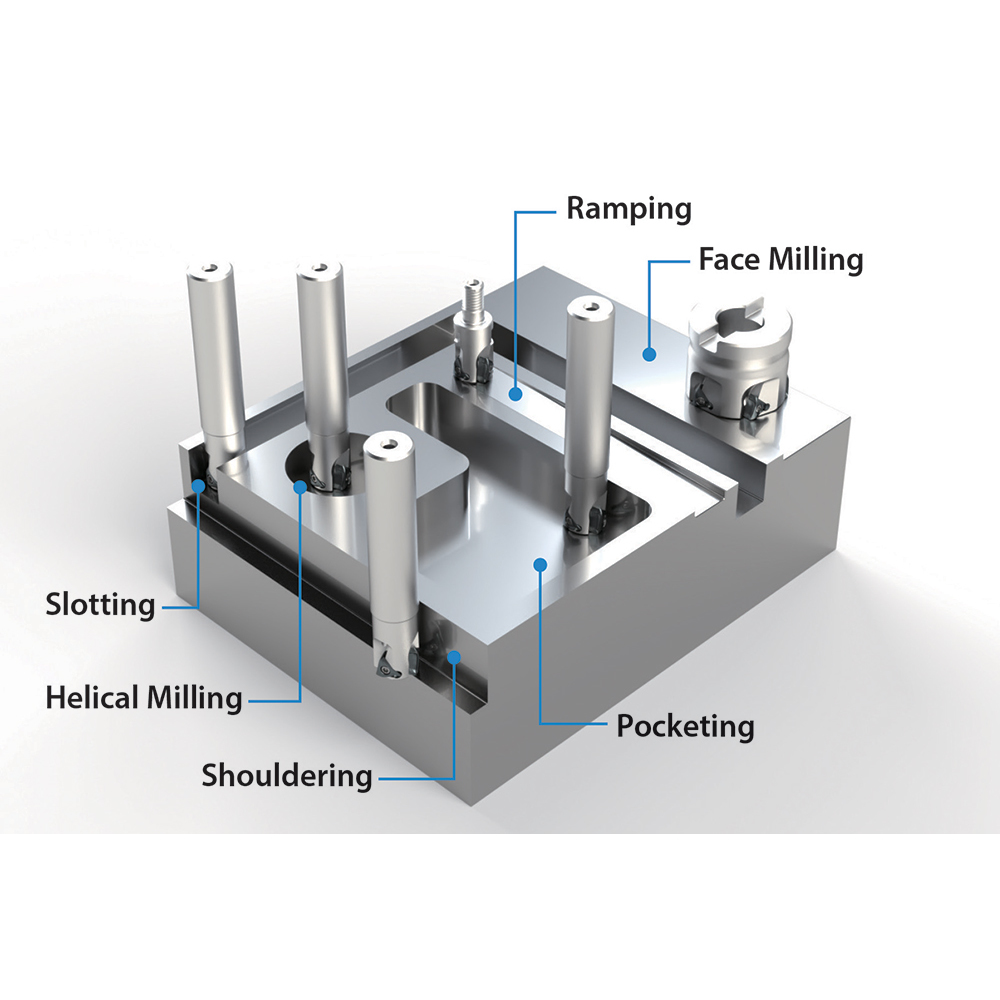

| Depth of Cut Maximum (APMX) | 6 mm | Application | Facing | Helical Milling | Plunging | Pocketing | Ramping | Shouldering | Slotting |
| Connection Diameter Machine Side (DCONMS) | 32 mm | Measurement Type | Metric |
| Overall Length (OAL) | 50 mm | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Hub Diameter (DHUB) | 70 mm | Series/List # | MEV |
| Master Insert Identification (MIID) | TOMT06 |
Product Features
| Country of Origin | Japan |
Shipping Info
Package Weight
2.580
