MRX 100R129TM RAD-6 Series, Radius Face Mill
Indexable Face Mill; 100 mm Dia. × 32 mm Shank Dia. × 50 mm OAL × 6 mm LOC ; 9 Inserts ; Series MRX

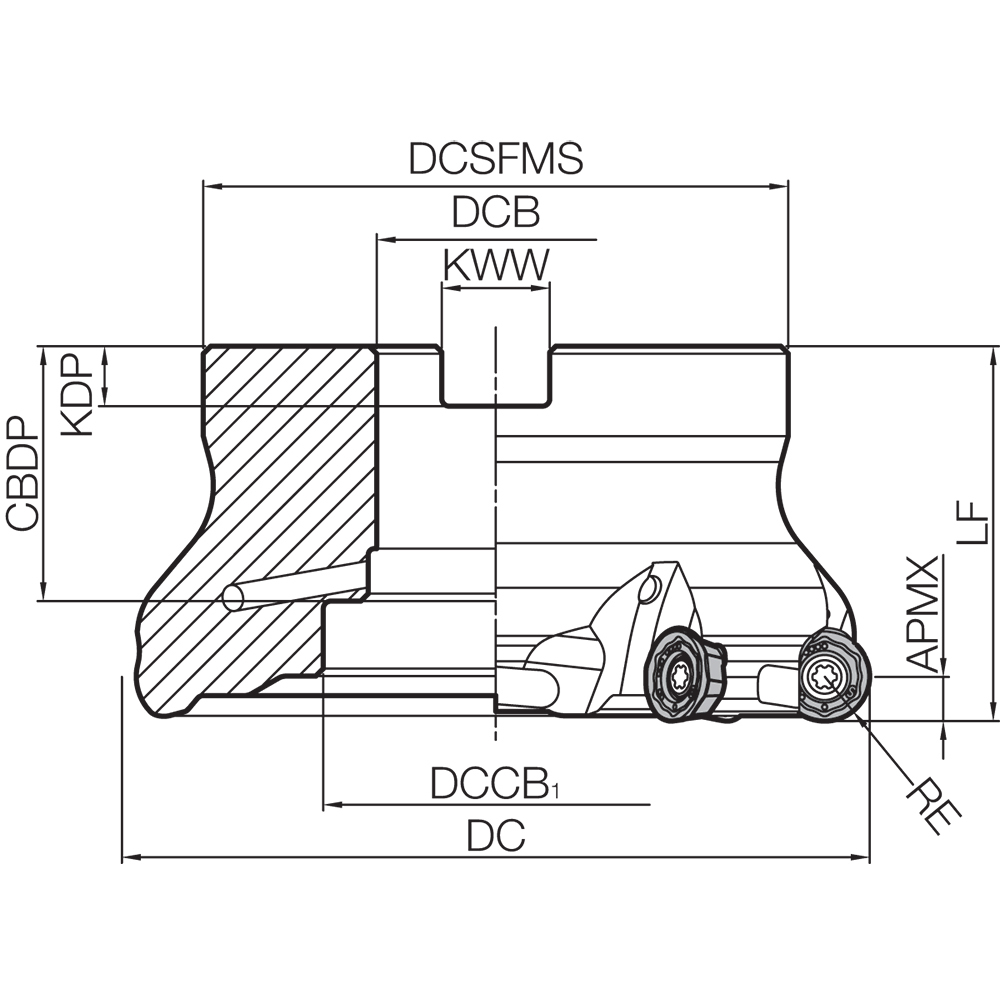

| Cutting Diameter (DC/DCX) | 100 mm | Master Insert Identification (MIID) | RPMT1204M0ER-GM | RPGT1204M0ER-GM | RPGT1204M0ER-SM | RPMT1204M0EN-GH | RPMW1204M0TN |
| Cutting Diameter (DC) | 100 mm | Ramping Angle Maximum (RMPX) | 1 Degrees |
| Cutting Diameter Maximum (DCX) | 100 mm | Coolant Supply Property (CSP) | Coolant Thru |
| Cutting Item Count (CICT) | 9 | Body Material | Steel |
| Depth of Cut Maximum (APMX) | 6 mm | Cutting Direction (HAND) | Right Hand |
| Connection Diameter Machine Side (DCONMS) | 32 mm | Application | Facing | Pocketing | Profiling | Ramping | Shouldering | Slotting |
| Overall Length (OAL) | 50 mm | Measurement Type | Metric |
| Hub Diameter (DHUB) | 78 mm | Series/List # | MRX |
Product Features
| Country of Origin | Japan |
Shipping Info
Package Weight
4.262
