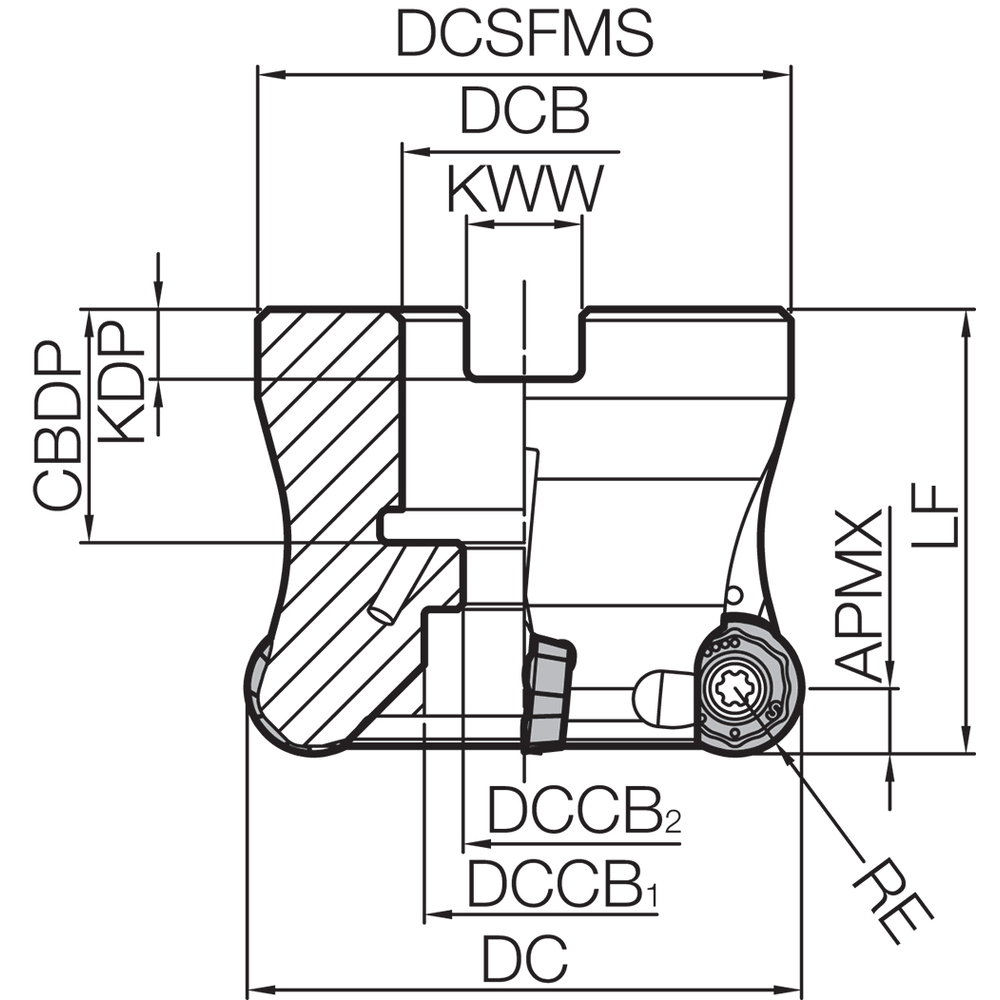

MRX 063R107TM RAD-6 Series, Radius Face Mill
Indexable Face Mill; 63 mm Dia. × 22 mm Shank Dia. × 40 mm OAL × 5 mm LOC ; 7 Inserts ; Series MRX
| Cutting Diameter (DC/DCX) | 63 mm | Master Insert Identification (MIID) | RPMT10T3M0ER-GM | RPGT10T3M0ER-GM | RPGT10T3M0ER-SM | RPMT10T3M0EN-GH |
| Cutting Diameter (DC) | 63 mm | Ramping Angle Maximum (RMPX) | 2 Degrees |
| Cutting Diameter Maximum (DCX) | 63 mm | Coolant Supply Property (CSP) | Coolant Thru |
| Cutting Item Count (CICT) | 7 | Body Material | Steel |
| Depth of Cut Maximum (APMX) | 5 mm | Cutting Direction (HAND) | Right Hand |
| Connection Diameter Machine Side (DCONMS) | 22 mm | Application | Facing | Pocketing | Profiling | Ramping | Shouldering | Slotting |
| Overall Length (OAL) | 40 mm | Measurement Type | Metric |
| Hub Diameter (DHUB) | 60 mm | Series/List # | MRX |
Product Features
| Country of Origin | Japan |
Shipping Info
Package Weight
1.788
