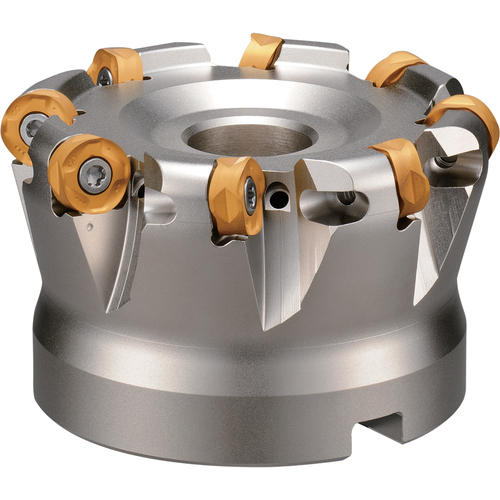

MRW 080R126TM RAD-8 Series, Radius Face Mill
Indexable Face Mill; 80 mm Dia. × 27 mm Shank Dia. × 50 mm OAL × 6 mm LOC ; 6 Inserts ; Series MRW

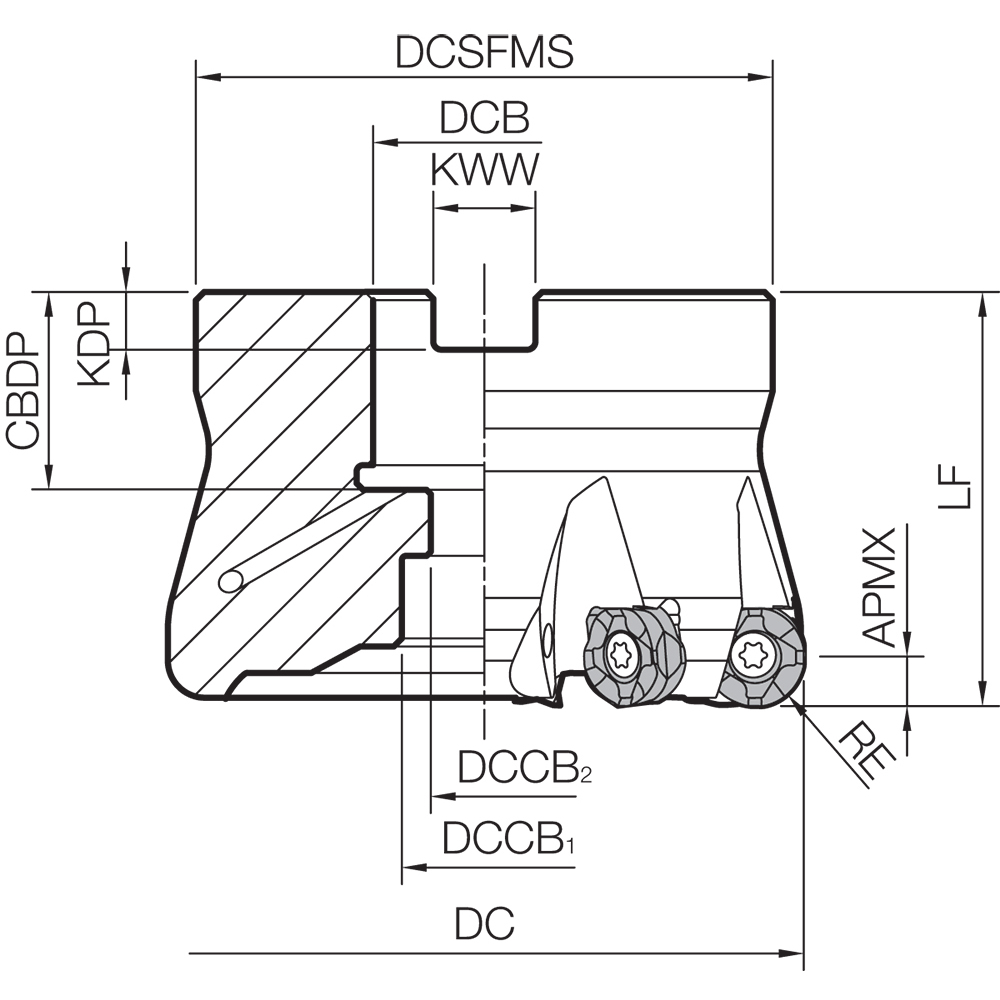

| Cutting Diameter (DC/DCX) | 80 mm | Master Insert Identification (MIID) | ROMU1204M0ER-GM | ROMU1204M0ER-SM | ROMU1204M0ER-GH |
| Cutting Diameter (DC) | 80 mm | Coolant Supply Property (CSP) | Coolant Thru |
| Cutting Diameter Maximum (DCX) | 80 mm | Body Material | Steel |
| Cutting Item Count (CICT) | 6 | Cutting Direction (HAND) | Right Hand |
| Depth of Cut Maximum (APMX) | 6 mm | Application | Contouring | Facing | Plunging | Profiling | Shouldering |
| Connection Diameter Machine Side (DCONMS) | 27 mm | Measurement Type | Metric |
| Overall Length (OAL) | 50 mm | Series/List # | MRW |
| Hub Diameter (DHUB) | 70 mm |
Product Features
| Country of Origin | Japan |
Shipping Info
Package Weight
3.201
