MEW 040R154TM Metric Bore Diameter, 90 Degree Face Mill
Indexable Face Mill; 40 mm Dia. × 16 mm Shank Dia. × 40 mm OAL × 15 mm LOC ; 4 Inserts ; 90 Degrees ; Series MEW

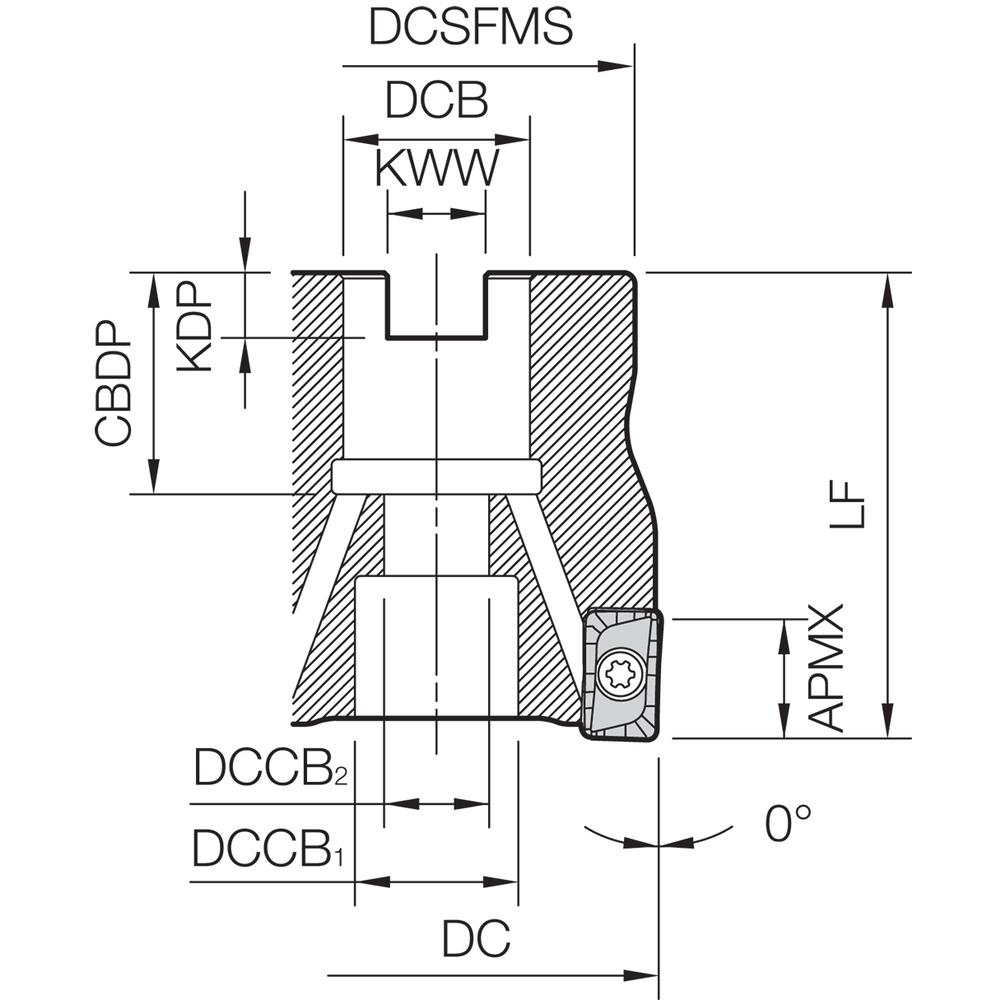

| Cutting Diameter (DC/DCX) | 40 mm | Master Insert Identification (MIID) | LOMU1505 | LOGT1505 |
| Cutting Diameter (DC) | 40 mm | Coolant Supply Property (CSP) | Coolant Thru |
| Cutting Diameter Maximum (DCX) | 40 mm | Body Material | Steel |
| Cutting Item Count (CICT) | 4 | Cutting Direction (HAND) | Right Hand |
| Depth of Cut Maximum (APMX) | 15 mm | Application | Facing | Plunging | Shouldering | Slotting |
| Connection Diameter Machine Side (DCONMS) | 16 mm | Measurement Type | Metric |
| Overall Length (OAL) | 40 mm | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Hub Diameter (DHUB) | 34 mm | Series/List # | MEW |
Product Features
| Country of Origin | Japan |
Shipping Info
Package Weight
.905
