MFWN90080R 05 7T Inch Bore Diameter, 90 Degree Face Mill
Indexable Face Mill; 63 mm Dia. × 22 mm Shank Dia. × 40 mm OAL × 8 mm LOC ; 3 Inserts ; 90 Degrees ; Series MFWN

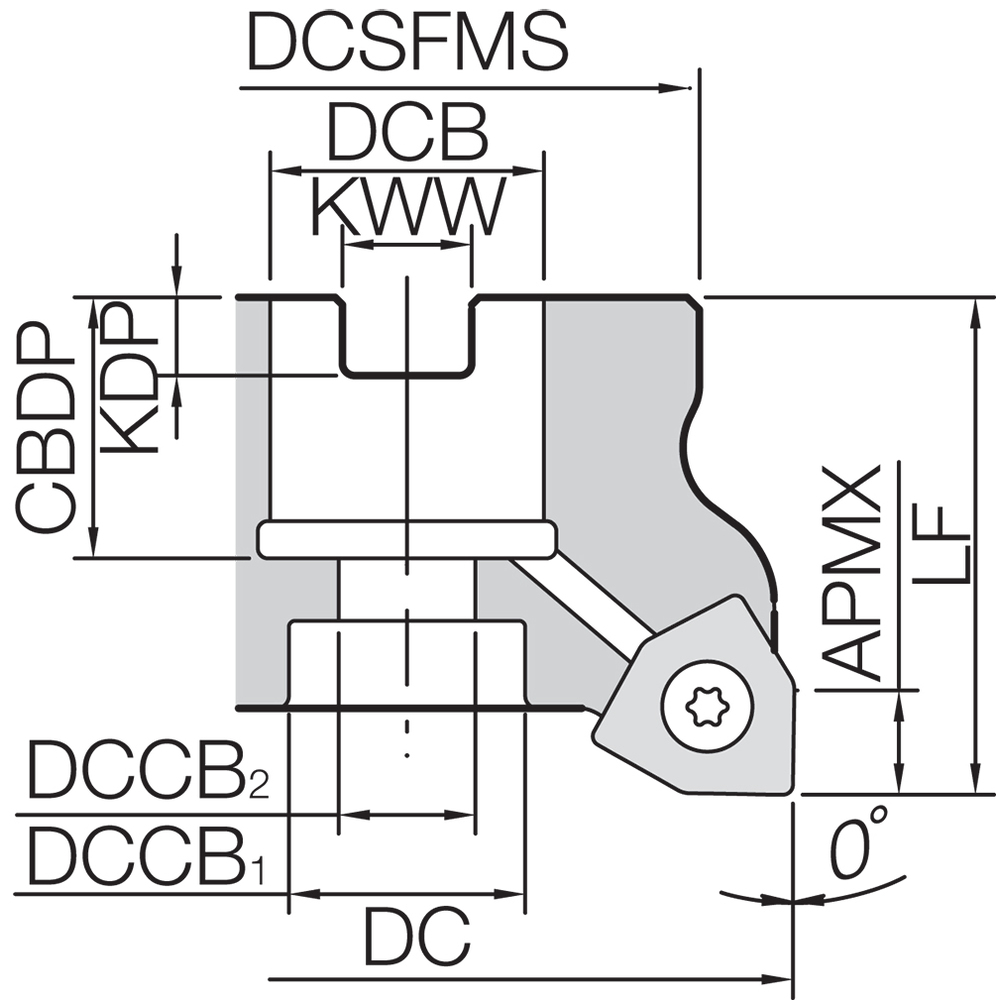

| Cutting Diameter (DC/DCX) | 63 mm | Master Insert Identification (MIID) | WNEU080608EN-GL | WNMU080608EN-GM | WNMU080608EN-SM | WNMU080608EN-GH | WNGT080608FN-AM |
| Cutting Diameter (DC) | 63 mm | Coolant Supply Property (CSP) | Coolant Thru |
| Cutting Diameter Maximum (DCX) | 63 mm | Body Material | Steel |
| Cutting Item Count (CICT) | 3 | Cutting Direction (HAND) | Right Hand |
| Depth of Cut Maximum (APMX) | 8 mm | Application | Facing | Plunging | Shouldering | Slotting |
| Connection Diameter Machine Side (DCONMS) | 22 mm | Measurement Type | Metric |
| Overall Length (OAL) | 40 mm | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Hub Diameter (DHUB) | 47 mm | Series/List # | MFWN |
Product Features
| Country of Origin | Japan |
Shipping Info
Package Weight
1.910
