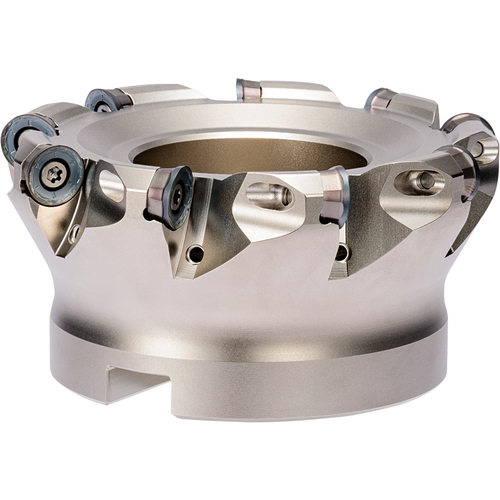

MRX 1500R105T RAD-6 Series, Radius Face Mill
Indexable Face Mill; 1-1/2″ Dia. × 1/2″ Shank Dia. × 1.5748″ OAL × 0.1969″ LOC ; 5 Inserts ; Series MRX
| Cutting Diameter (DC/DCX) | 1-1/2″ | Master Insert Identification (MIID) | RPMT10T3M0ER-GM | RPGT10T3M0ER-GM | RPGT10T3M0ER-SM | RPMT10T3M0EN-GH |
| Cutting Diameter (DC) | 1-1/2″ | Ramping Angle Maximum (RMPX) | 4 Degrees |
| Cutting Diameter Maximum (DCX) | 1-1/2″ | Coolant Supply Property (CSP) | Coolant Thru |
| Cutting Item Count (CICT) | 5 | Body Material | Steel |
| Depth of Cut Maximum (APMX) | 0.1969″ | Cutting Direction (HAND) | Right Hand |
| Connection Diameter Machine Side (DCONMS) | 1/2″ | Application | Facing | Pocketing | Profiling | Ramping | Shouldering | Slotting |
| Overall Length (OAL) | 1.5748″ | Measurement Type | Inch |
| Hub Diameter (DHUB) | 1.4″ | Series/List # | MRX |
Product Features
| Country of Origin | USA |
Shipping Info
Package Weight
.800
