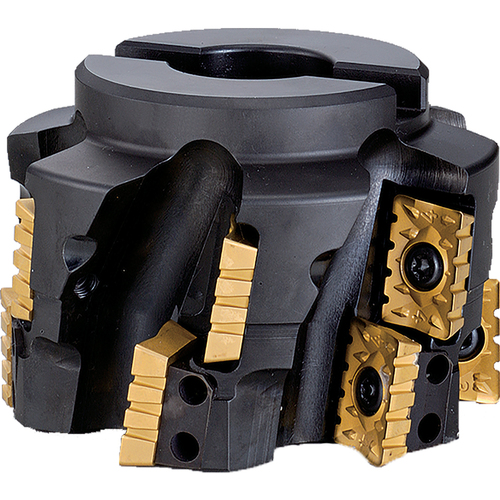

MSR 4000R215ID Inch Bore Diameter, 90 Degree Face Mill
Indexable Face Mill; 4″ Dia. × 1-1/2″ Shank Dia. × 2.7559″ OAL × 1.7717″ LOC ; 12 Inserts ; 90 Degrees ; Series MSR

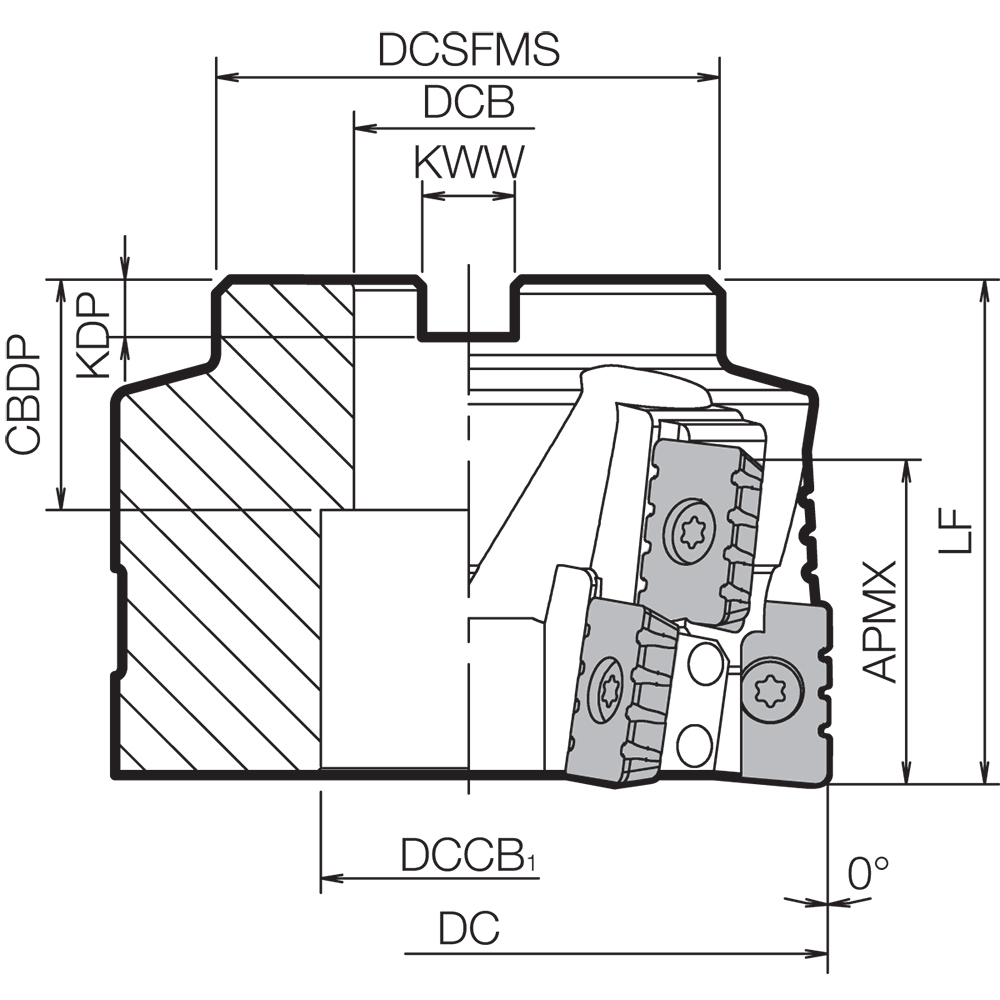

| Cutting Diameter (DC/DCX) | 4″ | Master Insert Identification (MIID) | APMT2506 |
| Cutting Diameter (DC) | 4″ | Coolant Supply Property (CSP) | External |
| Cutting Diameter Maximum (DCX) | 4″ | Body Material | Steel |
| Cutting Item Count (CICT) | 12 | Cutting Direction (HAND) | Right Hand |
| Depth of Cut Maximum (APMX) | 1.7717″ | Application | Facing | Heavy Milling | Shouldering | Slotting |
| Connection Diameter Machine Side (DCONMS) | 1-1/2″ | Measurement Type | Inch |
| Overall Length (OAL) | 2.7559″ | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Hub Diameter (DHUB) | 2-3/4″ | Series/List # | MSR |
Product Features
| Country of Origin | Japan |
Shipping Info
Package Weight
7.272
