MFK 100R1110T Inch Bore Diameter, 70 Degree Face Mill

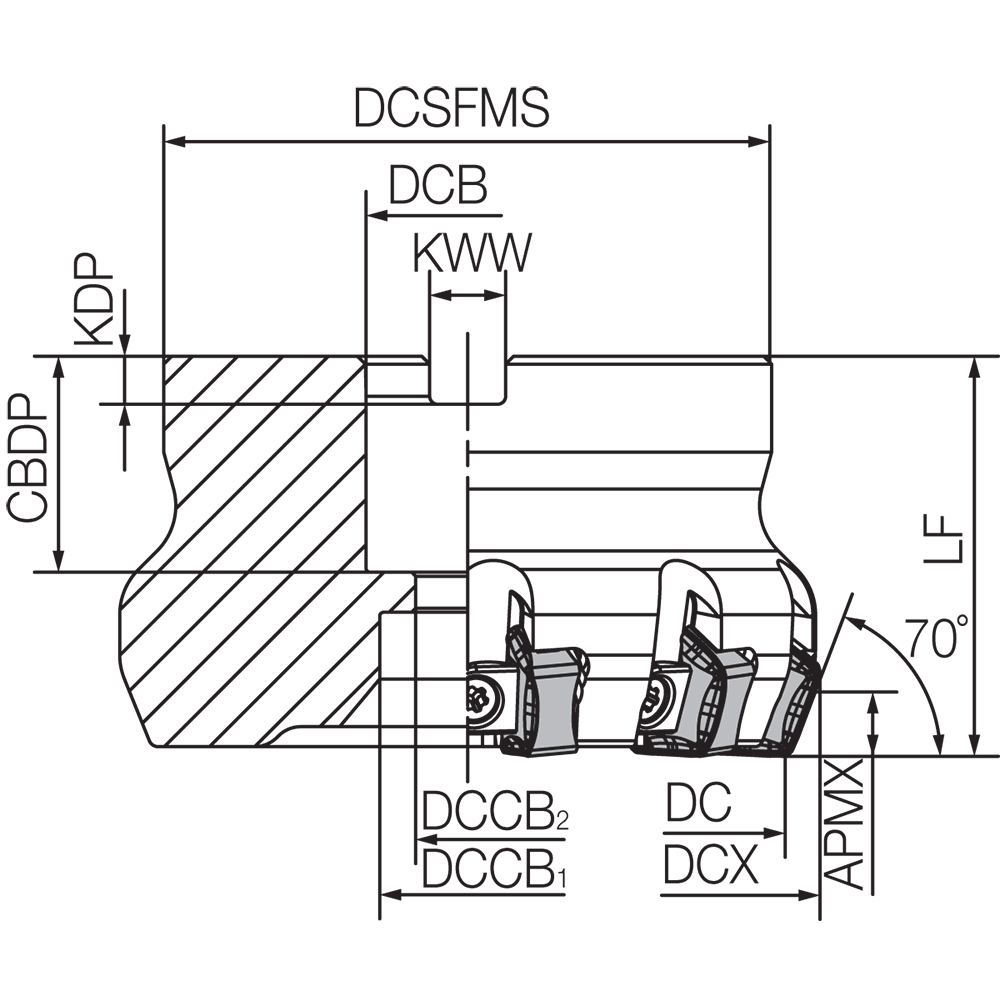

Indexable Face Mill; 109 mm Dia. × 31.75 mm Shank Dia. × 63 mm OAL × 6 mm LOC ; 10 Inserts ; 70 Degrees ; Series MFK
| Cutting Diameter (DC/DCX) | 109 mm | Master Insert Identification (MIID) | PNMG11 | PNEG11 | PNEA11 |
| Cutting Diameter (DC) | 109 mm | Coolant Supply Property (CSP) | External |
| Cutting Diameter Maximum (DCX) | 109 mm | Body Material | Steel |
| Cutting Item Count (CICT) | 10 | Cutting Direction (HAND) | Right Hand |
| Depth of Cut Maximum (APMX) | 6 mm | Application | Facing |
| Connection Diameter Machine Side (DCONMS) | 31.75 mm | Measurement Type | Metric |
| Overall Length (OAL) | 63 mm | Tool Cutting Edge Angle (KAPR) | 70 Degrees |
| Hub Diameter (DHUB) | 96 mm | Series/List # | MFK |
Product Features
| Country of Origin | Japan |
Shipping Info
Package Weight
7.966
