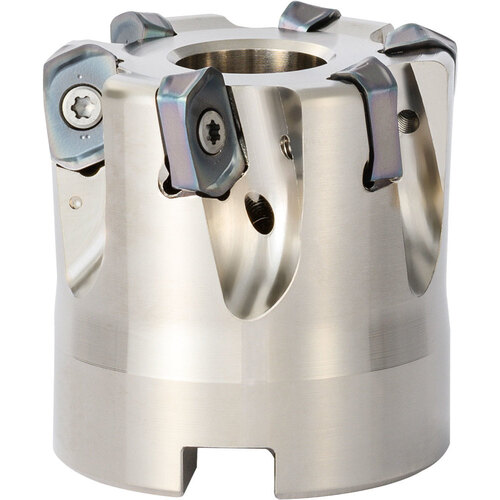

MFH 1500R046T, MFH-Max, 1.5000'' Cutting Diameter Maximum, High-Feed Face Mill
Indexable Face Mill; 1-1/2″ Dia. × 1/2″ Shank Dia. × 1.5752″ OAL × 0.0984″ LOC ; 6 Inserts ; 90 Degrees ; Series MFHM
| Cutting Diameter (DC/DCX) | 1-1/2″ | Ramping Angle Maximum (RMPX) | 1.4 Degrees |
| Cutting Diameter (DC) | 1-1/2″ | Coolant Supply Property (CSP) | Coolant Thru |
| Cutting Diameter Maximum (DCX) | 1-1/2″ | Body Material | Steel |
| Cutting Item Count (CICT) | 6 | Cutting Direction (HAND) | Right Hand |
| Depth of Cut Maximum (APMX) | 0.0984″ | Application | Helical Milling | High Feed | Ramping | Shouldering |
| Connection Diameter Machine Side (DCONMS) | 1/2″ | Measurement Type | Inch |
| Overall Length (OAL) | 1.5752″ | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Hub Diameter (DHUB) | 1.4″ | Series/List # | MFHM |
| Master Insert Identification (MIID) | LOMU040410ERGM |
Product Features
| Country of Origin | USA |
Shipping Info
Package Weight
1.250
