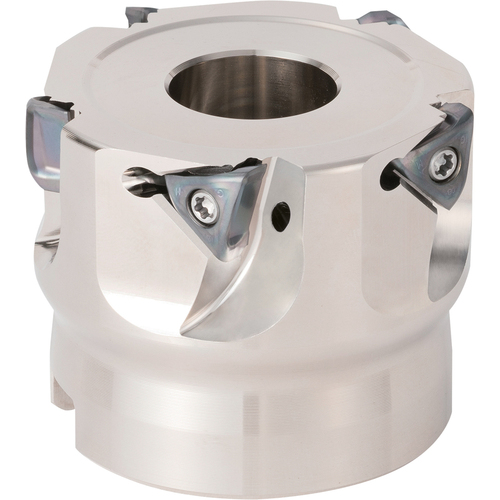

MEV 2000R066T Inch Bore Diameter, 90 Degree Face Mill
Indexable Face Mill; 2″ Dia. × 3/4″ Shank Dia. × 1.5748″ OAL × 0.2362″ LOC ; 6 Inserts ; 90 Degrees ; Series MEV
| Cutting Diameter (DC/DCX) | 2″ | Ramping Angle Maximum (RMPX) | 0.5 Degrees |
| Cutting Diameter (DC) | 2″ | Coolant Supply Property (CSP) | Coolant Thru |
| Cutting Diameter Maximum (DCX) | 2″ | Body Material | Steel |
| Cutting Item Count (CICT) | 6 | Cutting Direction (HAND) | Right Hand |
| Depth of Cut Maximum (APMX) | 0.2362″ | Application | Facing | Helical Milling | Plunging | Pocketing | Ramping | Shouldering | Slotting |
| Connection Diameter Machine Side (DCONMS) | 3/4″ | Measurement Type | Inch |
| Overall Length (OAL) | 1.5748″ | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Hub Diameter (DHUB) | 1.811″ | Series/List # | MEV |
| Master Insert Identification (MIID) | TOMT06 |
Product Features
| Country of Origin | USA |
Shipping Info
Package Weight
1.128
