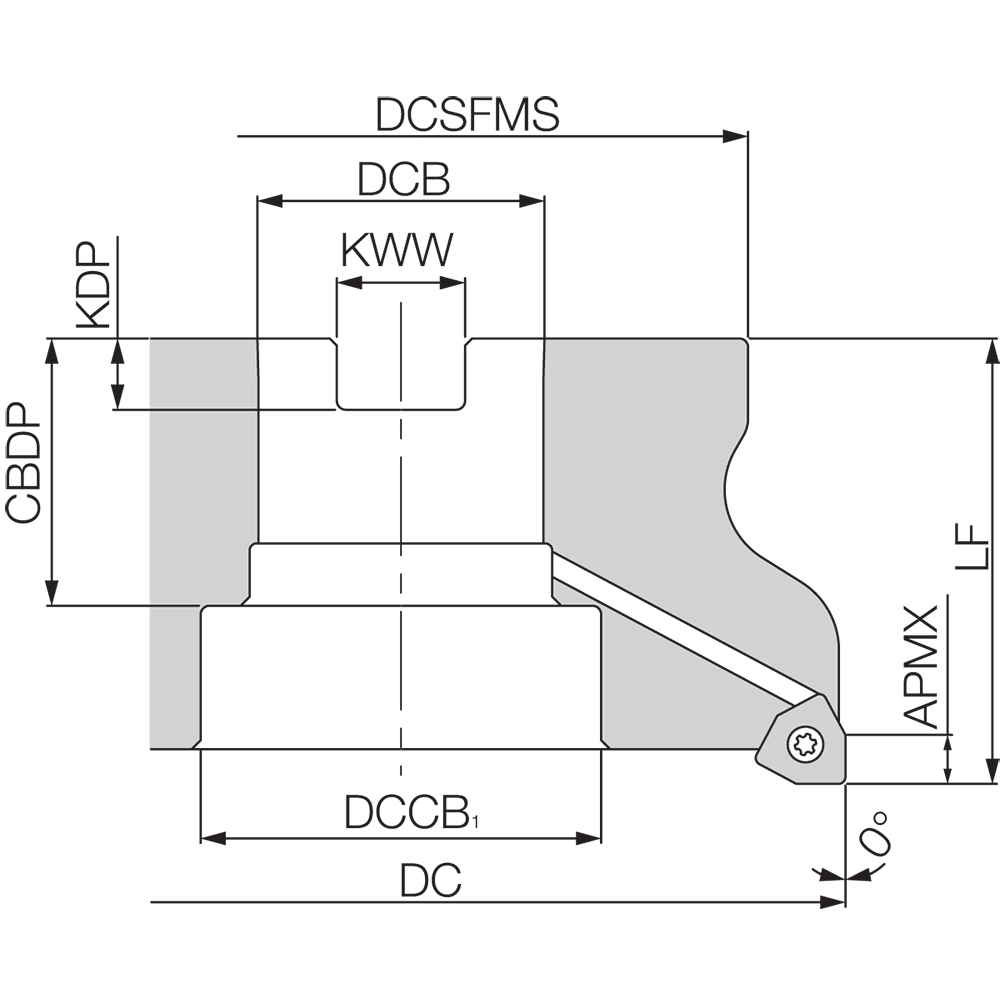

MFWN90125R 05 11T Inch Bore Diameter, 90 Degree Face Mill
Indexable Face Mill; 4.9213″ Dia. × 1-1/2″ Shank Dia. × 2.4803″ OAL × 0.1969″ LOC ; 11 Inserts ; 90 Degrees ; Series MFWN
| Cutting Diameter (DC/DCX) | 4.9213″ | Master Insert Identification (MIID) | WNMU080604EN-GM | WNMU080608EN-GM | WNMU080608EN-SM | WNMU080608EN-GH | WNEU080608EN-GL | WNGT080608FN-AM |
| Cutting Diameter (DC) | 4.9213″ | Coolant Supply Property (CSP) | Coolant Thru |
| Cutting Diameter Maximum (DCX) | 4.9213″ | Body Material | Steel |
| Cutting Item Count (CICT) | 11 | Cutting Direction (HAND) | Right Hand |
| Depth of Cut Maximum (APMX) | 0.1969″ | Application | Facing | Plunging | Shouldering | Slotting |
| Connection Diameter Machine Side (DCONMS) | 1-1/2″ | Measurement Type | Inch |
| Overall Length (OAL) | 2.4803″ | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Hub Diameter (DHUB) | 3.5039″ | Series/List # | MFWN |
Product Features
| Country of Origin | Japan |
Shipping Info
Package Weight
7.004
