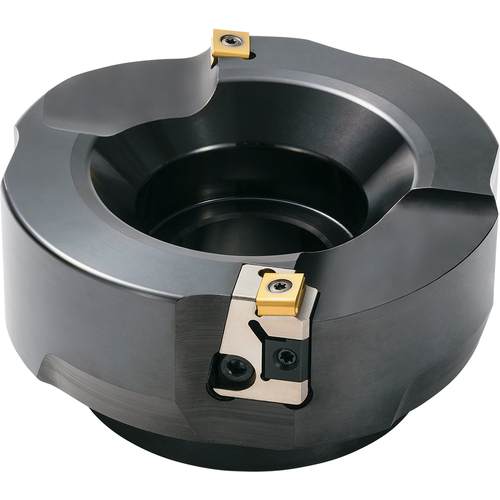

MFF 080RMSF Metric Bore Diameter, 90 Degree Face Mill
Indexable Face Mill; 80 mm Dia. × 27 mm Shank Dia. × 50 mm OAL × 0.3 mm LOC ; 2 Inserts ; 90 Degrees ; Series MFF
| Cutting Diameter (DC/DCX) | 80 mm | Master Insert Identification (MIID) | LNGX120916 |
| Cutting Diameter (DC) | 80 mm | Coolant Supply Property (CSP) | External |
| Cutting Diameter Maximum (DCX) | 80 mm | Body Material | Steel |
| Cutting Item Count (CICT) | 2 | Cutting Direction (HAND) | Right Hand |
| Depth of Cut Maximum (APMX) | 0.3 mm | Application | Finish Milling |
| Connection Diameter Machine Side (DCONMS) | 27 mm | Measurement Type | Metric |
| Overall Length (OAL) | 50 mm | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Hub Diameter (DHUB) | 60 mm | Series/List # | MFF |
Product Features
| Country of Origin | Japan |
Shipping Info
Package Weight
3.443
