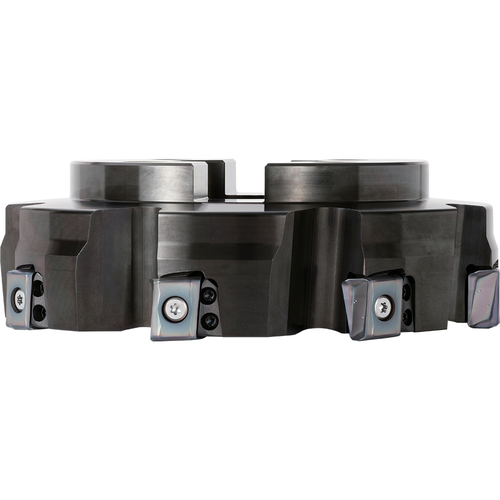

MFLN 90100R4TM Metric Bore Diameter, 90 Degree Face Mill
Indexable Face Mill; 100 mm Dia. × 32 mm Shank Dia. × 50 mm OAL × 20 mm LOC ; 4 Inserts ; 90 Degrees ; Series MFLN

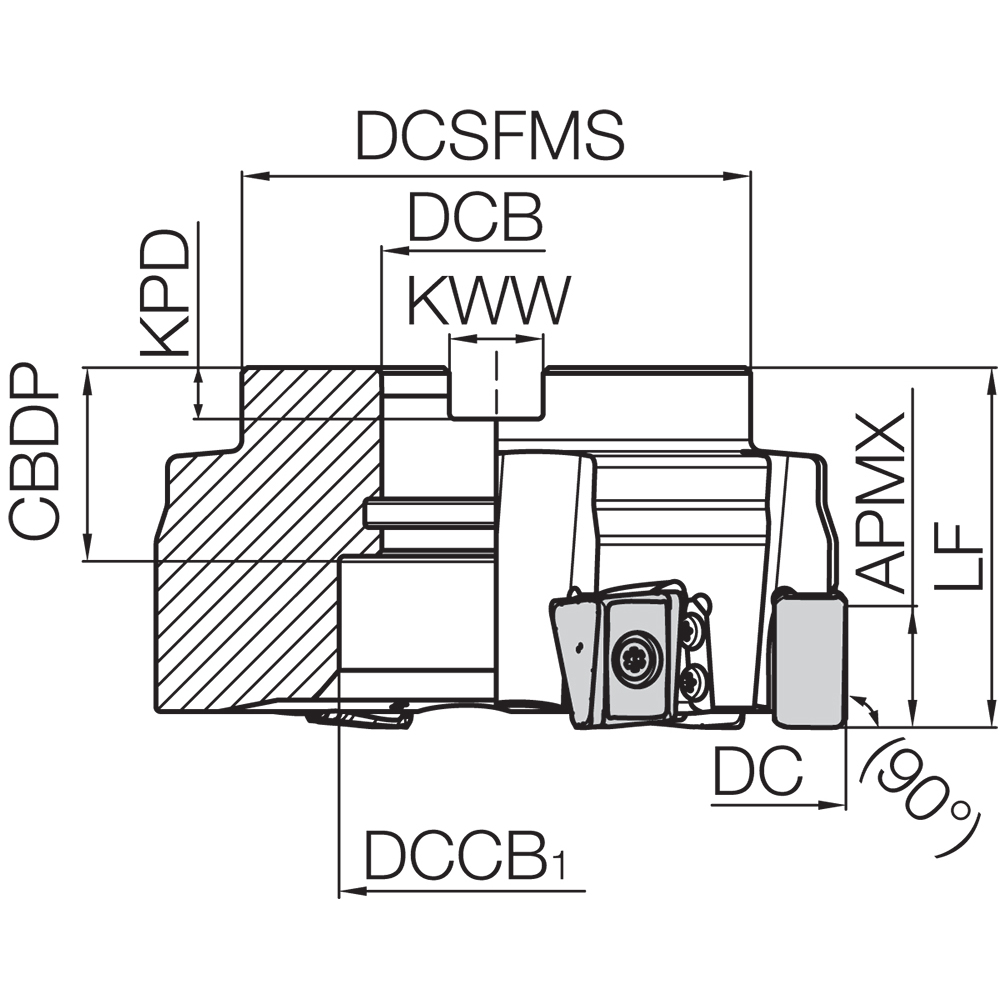

| Cutting Diameter (DC/DCX) | 100 mm | Master Insert Identification (MIID) | LOGU221616ER-GM | LOGU2216PAER-GM |
| Cutting Diameter (DC) | 100 mm | Coolant Supply Property (CSP) | Coolant Thru |
| Cutting Diameter Maximum (DCX) | 100 mm | Body Material | Steel |
| Cutting Item Count (CICT) | 4 | Cutting Direction (HAND) | Right Hand |
| Depth of Cut Maximum (APMX) | 20 mm | Application | Facing | Shouldering |
| Connection Diameter Machine Side (DCONMS) | 32 mm | Measurement Type | Metric |
| Overall Length (OAL) | 50 mm | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Hub Diameter (DHUB) | 70 mm | Series/List # | MFLN |
Product Features
| Country of Origin | Japan |
Shipping Info
Package Weight
4.181
