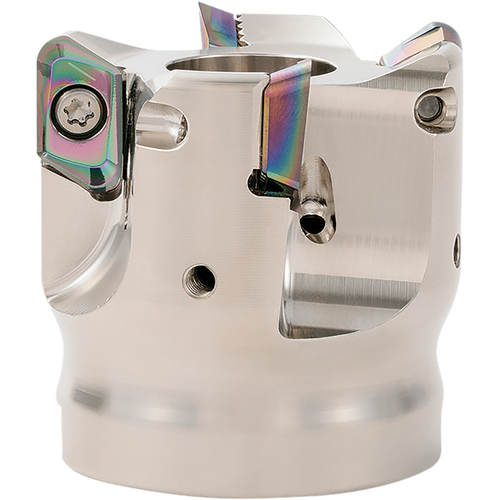

MEAS 050R134TM Metric Bore Diameter, 90 Degree Face Mill
Indexable Face Mill; 50 mm Dia. × 22 mm Shank Dia. × 50 mm OAL × 12 mm LOC ; 4 Inserts ; 90 Degrees ; Series MEAS

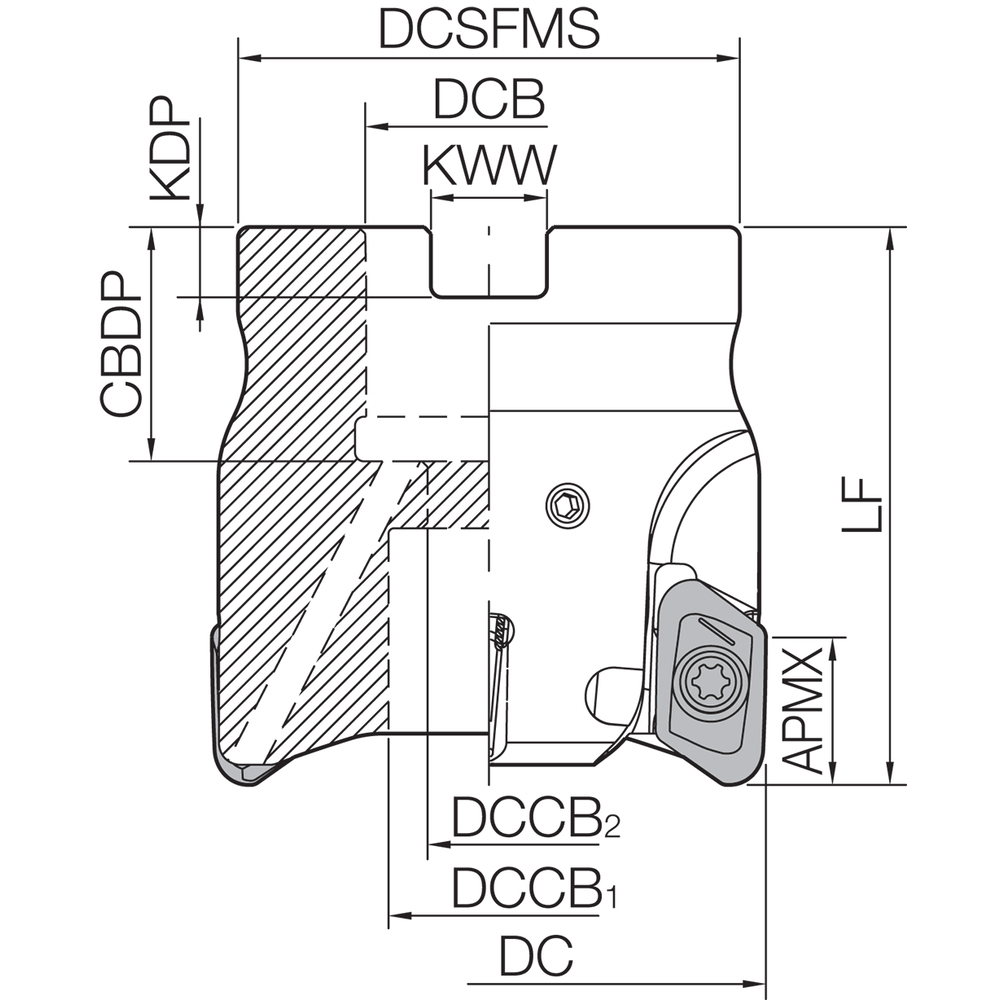

| Cutting Diameter (DC/DCX) | 50 mm | Ramping Angle Maximum (RMPX) | 6 Degrees |
| Cutting Diameter (DC) | 50 mm | Coolant Supply Property (CSP) | Coolant Thru |
| Cutting Diameter Maximum (DCX) | 50 mm | Body Material | Steel |
| Cutting Item Count (CICT) | 4 | Cutting Direction (HAND) | Right Hand |
| Depth of Cut Maximum (APMX) | 12 mm | Application | Contouring | Facing | Helical Milling | Plunging | Pocketing | Ramping | Shouldering | Slotting |
| Connection Diameter Machine Side (DCONMS) | 22 mm | Measurement Type | Metric |
| Overall Length (OAL) | 50 mm | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Hub Diameter (DHUB) | 45 mm | Series/List # | MEAS |
| Master Insert Identification (MIID) | KCGTFR-AL |
Product Features
| Country of Origin | China |
Shipping Info
Package Weight
1.372
