MFSN 88160R15TMG Metric Bore Diameter, 88 Degree Face Mill
Indexable Face Mill; 162 mm Dia. × 40 mm Shank Dia. × 63 mm OAL × 5 mm LOC ; 15 Inserts ; 88 Degrees ; Series MFSN

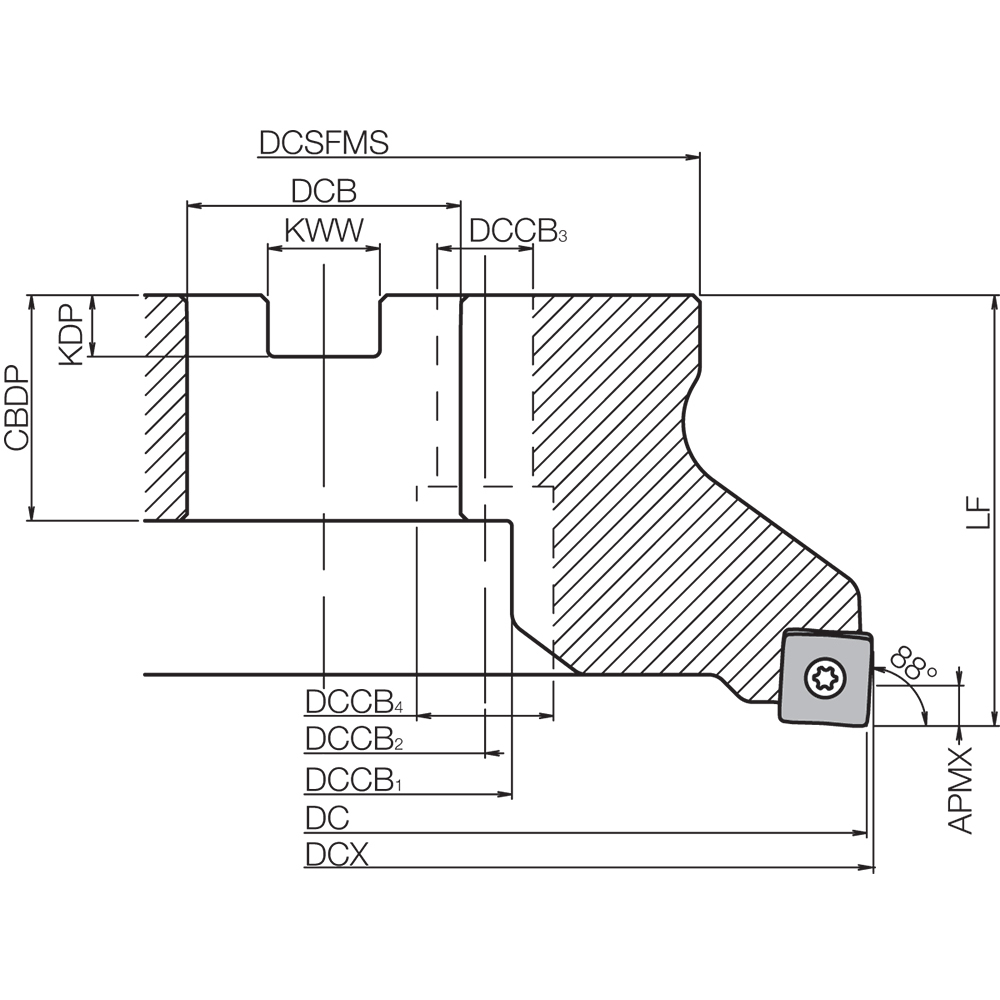

| Cutting Diameter (DC/DCX) | 162 mm | Master Insert Identification (MIID) | SNMU130508EN-GM | SNMU130508EN-SM | SNMU130508EN-GH |
| Cutting Diameter (DC) | 162 mm | Coolant Supply Property (CSP) | External |
| Cutting Diameter Maximum (DCX) | 162 mm | Body Material | Steel |
| Cutting Item Count (CICT) | 15 | Cutting Direction (HAND) | Right Hand |
| Depth of Cut Maximum (APMX) | 5 mm | Application | Facing |
| Connection Diameter Machine Side (DCONMS) | 40 mm | Measurement Type | Metric |
| Overall Length (OAL) | 63 mm | Tool Cutting Edge Angle (KAPR) | 88 Degrees |
| Hub Diameter (DHUB) | 110 mm | Series/List # | MFSN |
Product Features
| Country of Origin | Japan |
Shipping Info
Package Weight
10.339
