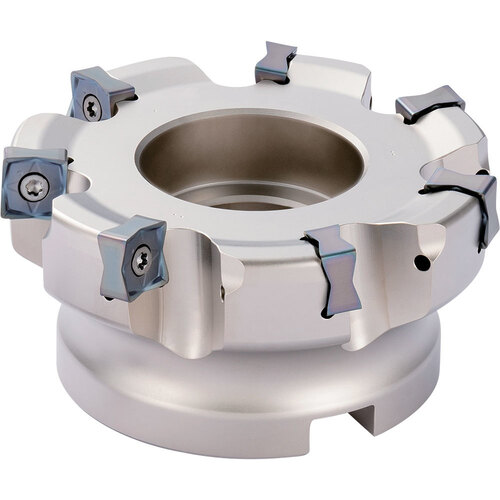

MFSN 88100R7TMG Metric Bore Diameter, 88 Degree Face Mill
Indexable Face Mill; 102 mm Dia. × 32 mm Shank Dia. × 50 mm OAL × 5 mm LOC ; 7 Inserts ; 88 Degrees ; Series MFSN

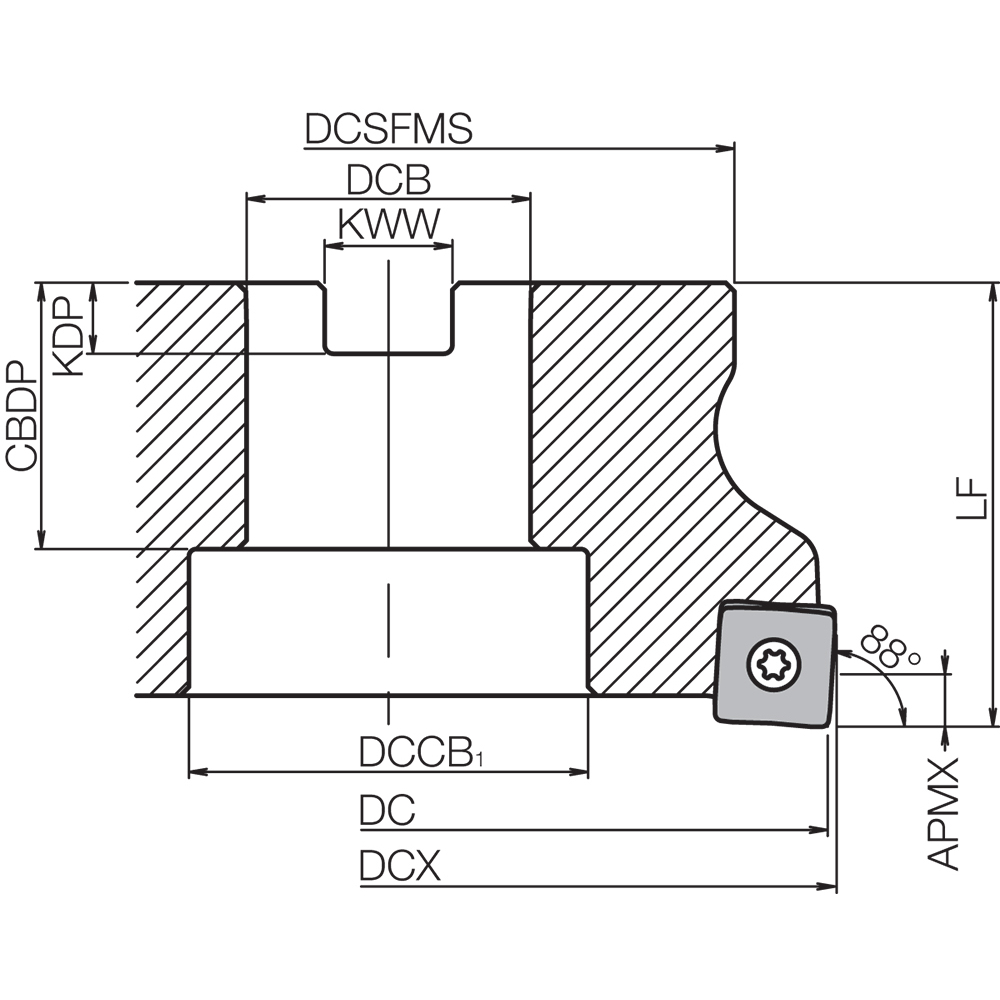

| Cutting Diameter (DC/DCX) | 102 mm | Master Insert Identification (MIID) | SNMU130508EN-GM | SNMU130508EN-SM | SNMU130508EN-GH |
| Cutting Diameter (DC) | 102 mm | Coolant Supply Property (CSP) | External |
| Cutting Diameter Maximum (DCX) | 102 mm | Body Material | Steel |
| Cutting Item Count (CICT) | 7 | Cutting Direction (HAND) | Right Hand |
| Depth of Cut Maximum (APMX) | 5 mm | Application | Facing |
| Connection Diameter Machine Side (DCONMS) | 32 mm | Measurement Type | Metric |
| Overall Length (OAL) | 50 mm | Tool Cutting Edge Angle (KAPR) | 88 Degrees |
| Hub Diameter (DHUB) | 78 mm | Series/List # | MFSN |
Product Features
| Country of Origin | Japan |
Shipping Info
Package Weight
4.218
