MFPN 66160R11TMG Metric Bore Diameter, 66 Degree Face Mill

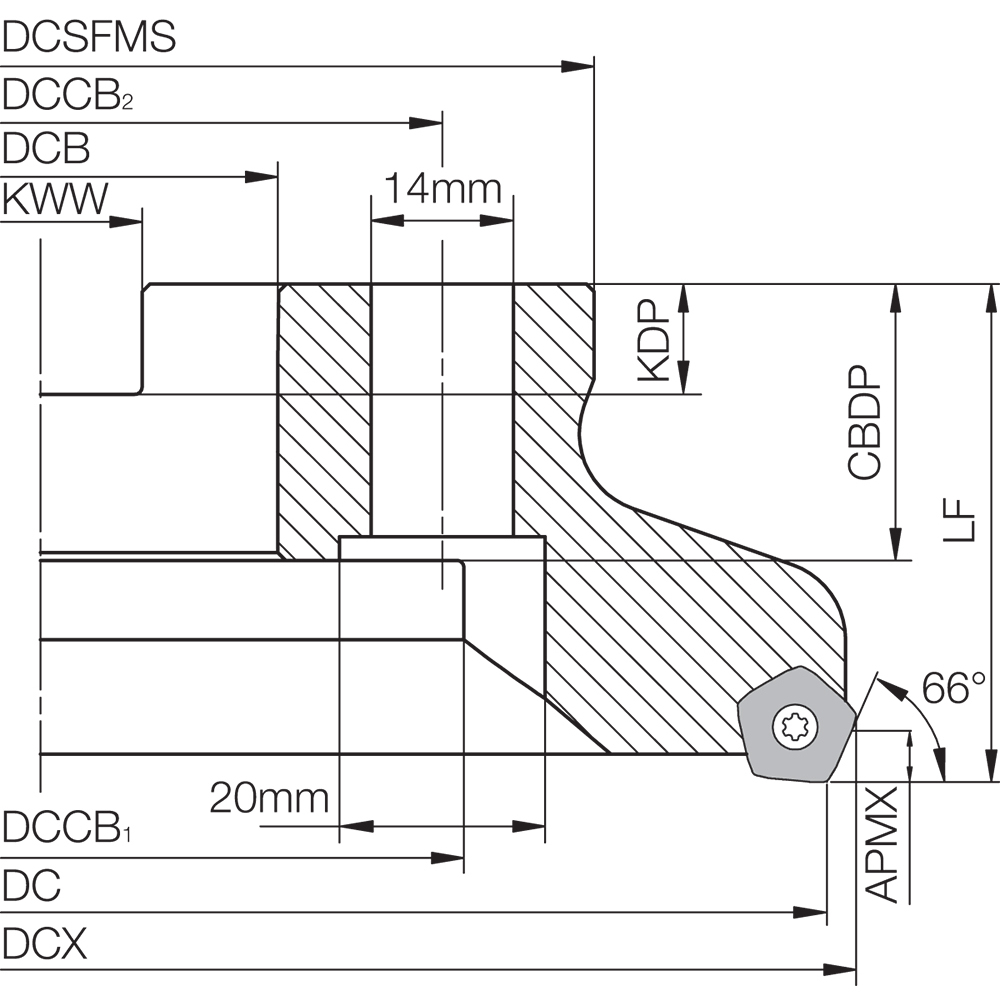

Indexable Face Mill; 167 mm Dia. × 40 mm Shank Dia. × 63 mm OAL × 6 mm LOC ; 11 Inserts ; 66 Degrees ; Series MFPN
| Cutting Diameter (DC/DCX) | 167 mm | Master Insert Identification (MIID) | PNMU0905XNER-GM | PNMU0905XNER-SM | PNMU0905XNER-GH |
| Cutting Diameter (DC) | 167 mm | Coolant Supply Property (CSP) | External |
| Cutting Diameter Maximum (DCX) | 167 mm | Body Material | Steel |
| Cutting Item Count (CICT) | 11 | Cutting Direction (HAND) | Right Hand |
| Depth of Cut Maximum (APMX) | 6 mm | Application | Facing |
| Connection Diameter Machine Side (DCONMS) | 40 mm | Measurement Type | Metric |
| Overall Length (OAL) | 63 mm | Tool Cutting Edge Angle (KAPR) | 66 Degrees |
| Hub Diameter (DHUB) | 89 mm | Series/List # | MFPN |
Product Features
| Country of Origin | Japan |
Shipping Info
Package Weight
9.061
