MFPN 66080R6TMG Metric Bore Diameter, 66 Degree Face Mill
Indexable Face Mill; 88 mm Dia. × 27 mm Shank Dia. × 50 mm OAL × 6 mm LOC ; 6 Inserts ; 66 Degrees ; Series MFPN

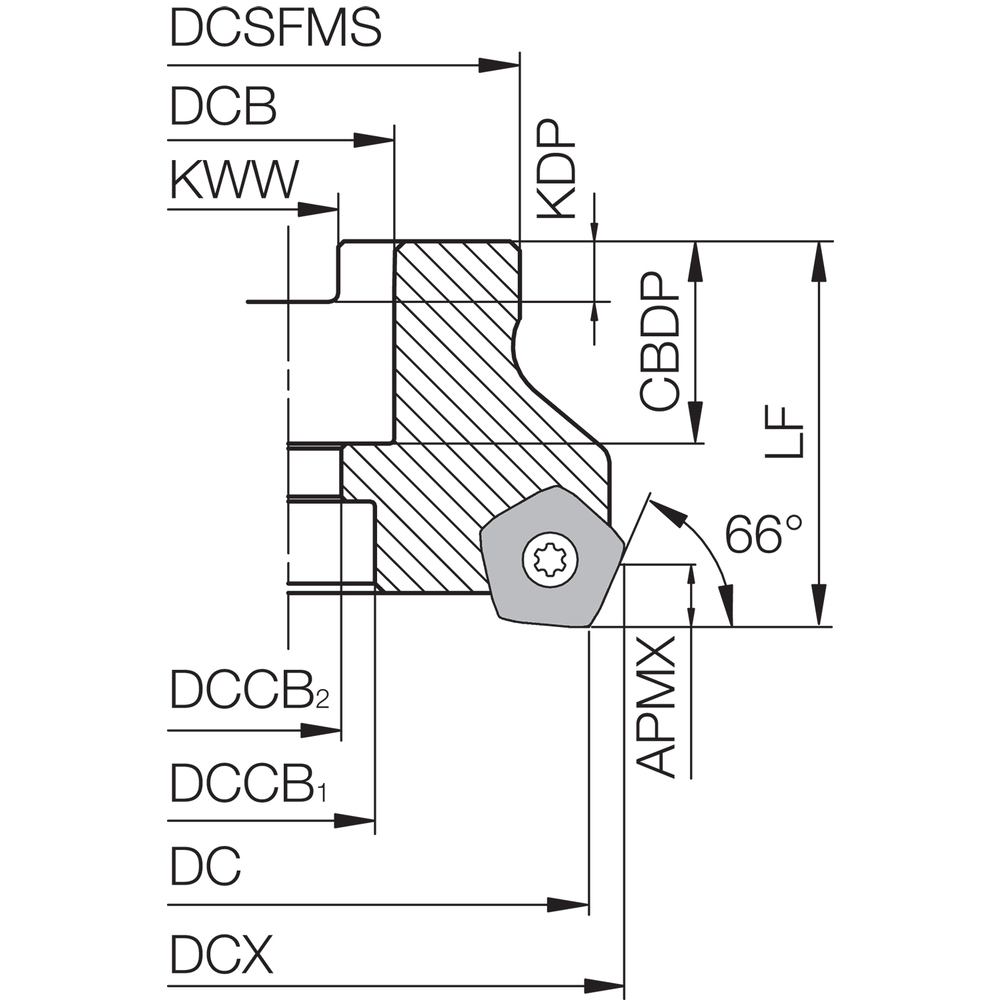

| Cutting Diameter (DC/DCX) | 88 mm | Master Insert Identification (MIID) | PNMU0905XNER-GM | PNMU0905XNER-SM | PNMU0905XNER-GH |
| Cutting Diameter (DC) | 88 mm | Coolant Supply Property (CSP) | External |
| Cutting Diameter Maximum (DCX) | 88 mm | Body Material | Steel |
| Cutting Item Count (CICT) | 6 | Cutting Direction (HAND) | Right Hand |
| Depth of Cut Maximum (APMX) | 6 mm | Application | Facing |
| Connection Diameter Machine Side (DCONMS) | 27 mm | Measurement Type | Metric |
| Overall Length (OAL) | 50 mm | Tool Cutting Edge Angle (KAPR) | 66 Degrees |
| Hub Diameter (DHUB) | 70 mm | Series/List # | MFPN |
Product Features
| Country of Origin | Japan |
Shipping Info
Package Weight
3.347
Related Documentation
