MFPN 66100R7TG Inch Bore Diameter, 66 Degree Face Mill
Indexable Face Mill; 107 mm Dia. × 31.75 mm Shank Dia. × 50 mm OAL × 6 mm LOC ; 7 Inserts ; 66 Degrees ; Series MFPN

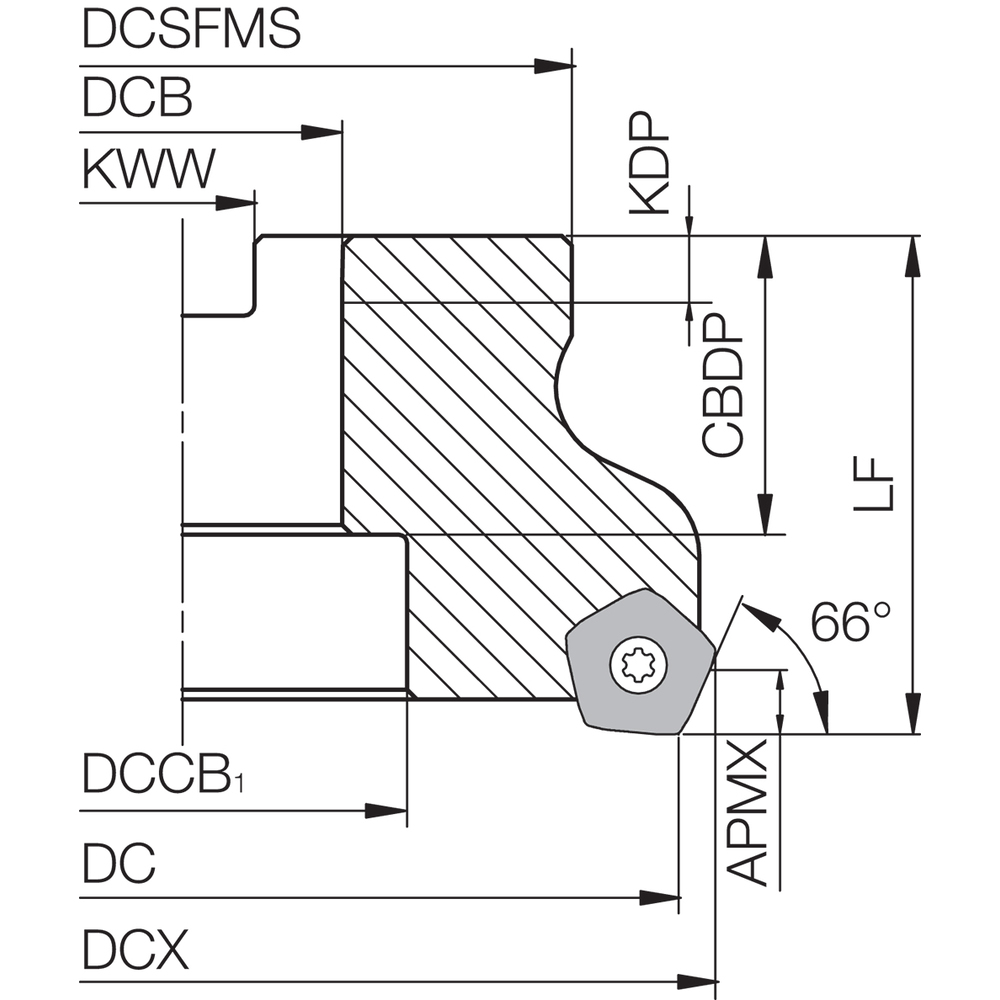

| Cutting Diameter (DC/DCX) | 107 mm | Master Insert Identification (MIID) | PNMU0905XNER-GM | PNMU0905XNER-SM | PNMU0905XNER-GH |
| Cutting Diameter (DC) | 107 mm | Coolant Supply Property (CSP) | External |
| Cutting Diameter Maximum (DCX) | 107 mm | Body Material | Steel |
| Cutting Item Count (CICT) | 7 | Cutting Direction (HAND) | Right Hand |
| Depth of Cut Maximum (APMX) | 6 mm | Application | Facing |
| Connection Diameter Machine Side (DCONMS) | 31.75 mm | Measurement Type | Metric |
| Overall Length (OAL) | 50 mm | Tool Cutting Edge Angle (KAPR) | 66 Degrees |
| Hub Diameter (DHUB) | 78 mm | Series/List # | MFPN |
Product Features
| Country of Origin | Japan |
Shipping Info
Package Weight
4.659
