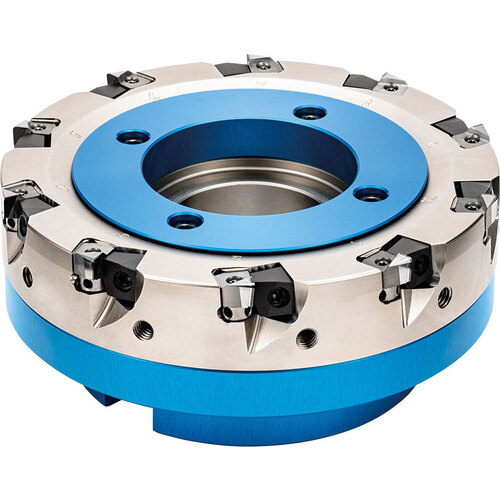

MFAH 100RA8TMSF Metric Bore Diameter, 90 Degree Face Mill
Indexable Face Mill; 100 mm Dia. × 32 mm Shank Dia. × 50 mm OAL × 4.6 mm LOC ; 8 Inserts ; 90 Degrees ; Series MFAH
| Cutting Diameter (DC/DCX) | 100 mm | Master Insert Identification (MIID) | ENET0905 |
| Cutting Diameter (DC) | 100 mm | Coolant Supply Property (CSP) | Coolant Thru |
| Cutting Diameter Maximum (DCX) | 100 mm | Cutting Direction (HAND) | Right Hand |
| Cutting Item Count (CICT) | 8 | Application | Facing | Finish Milling |
| Depth of Cut Maximum (APMX) | 4.6 mm | Measurement Type | Metric |
| Connection Diameter Machine Side (DCONMS) | 32 mm | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Overall Length (OAL) | 50 mm | Series/List # | MFAH |
| Hub Diameter (DHUB) | 85 mm |
Product Features
| Country of Origin | Japan |
Shipping Info
Package Weight
5.180
