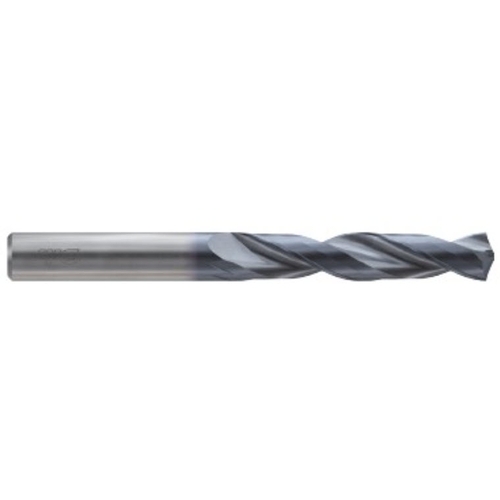

5.95 5XD IC Dream Drill X
SC Drill; 5.95 mm Dia. × 6 mm Shank Dia. × 82 mm OAL × 44 mm LCF ; 140 Degrees ; 5xD ; RCH Coating ; Series DTX424
| Drill Bit Size / Cutting Diameter (DC) | 5.95 mm | Shank Type | Round |
| Drill Bit Size / Cutting Diameter (DC) - Inch | 15/64″ | Shape | Round |
| Decimal Equivalent | 0.2344″ | Cutting Edge Material | Carbide |
| Drill Bit Size / Cutting Diameter (DC) - Metric | 5.95 mm | Tool Type | Carbide Dream Drill - 5xD |
| Length Group | 5xD | Measurement Type | Metric |
| Coating | RCH Coating | Series/List # | DTX424 |
| Applicable Material | | Steel | Cast Iron| | Usable Length (LU) | 44 mm |
| Connection Diameter Machine Side (DCONMS) | 6 mm | Length Chip Flute (LCF) | 44 mm |
| Coolant Supply Property (CSP) | External | Overall Length (OAL) | 82 mm |
| Point Angle (SIG) | 140 Degrees | Flute Count (NOF) | 2 |
| Point Length (PL) | 0.0427″ | Cutting Direction (HAND) | Right Hand |
| Functional Length (LF) | 44 mm | Shank Diameter Tolerance (TCDMM) | h6 |
| Flute Helix Angle (FHA) | 30 Degrees |
Product Features
| Country of Origin | S.Korea |
Shipping Info
Package Weight
0.065
