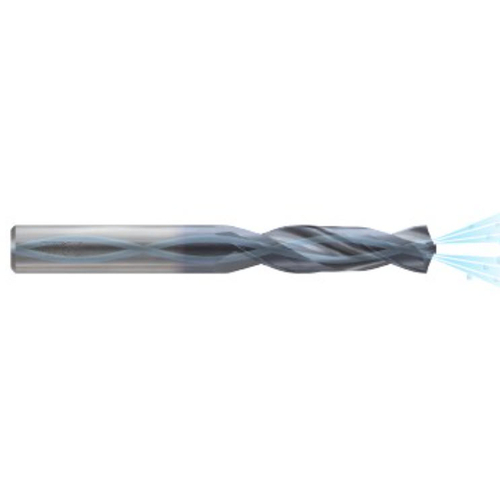

7.3 3XD IC Dream Drill X
SC Drill; 7.3 mm Dia. × 7.3 mm Shank Dia. × 74 mm OAL × 34 mm LCF ; 140 Degrees ; 3xD ; RCH Coating ; Series DTX404
| Drill Bit Size / Cutting Diameter (DC) | 7.3 mm | Shank Type | Round |
| Drill Bit Size / Cutting Diameter (DC) - Inch | 0.2874″ | Shape | Round |
| Decimal Equivalent | 0.2874″ | Cutting Edge Material | Carbide |
| Drill Bit Size / Cutting Diameter (DC) - Metric | 7.3 mm | Tool Type | Carbide Dream Drill - 3xD |
| Length Group | 3xD | Measurement Type | Metric |
| Coating | RCH Coating | Series/List # | DTX404 |
| Applicable Material | | Steel | Cast Iron| | Usable Length (LU) | 34 mm |
| Connection Diameter Machine Side (DCONMS) | 7.3 mm | Length Chip Flute (LCF) | 34 mm |
| Coolant Supply Property (CSP) | External | Overall Length (OAL) | 74 mm |
| Point Angle (SIG) | 140 Degrees | Flute Count (NOF) | 2 |
| Point Length (PL) | 0.0523″ | Cutting Direction (HAND) | Right Hand |
| Functional Length (LF) | 34 mm | Shank Diameter Tolerance (TCDMM) | h6 |
| Flute Helix Angle (FHA) | 30 Degrees |
Product Features
| Country of Origin | S.Korea |
Shipping Info
Package Weight
0.086
