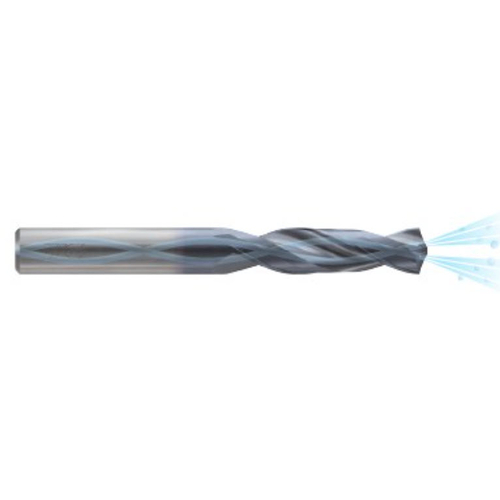

0.257 3XD IC Dream Drill X
SC Drill; 6.53 mm Dia. × 6.53 mm Shank Dia. × 82.95 mm OAL × 42.86 mm LCF ; 140 Degrees ; 3xD ; RCH Coating ; Series DTX414
| Drill Bit Size / Cutting Diameter (DC) | 6.53 mm | Shank Type | Round |
| Drill Bit Size / Cutting Diameter (DC) - Inch | 0.257″ | Shape | Round |
| Decimal Equivalent | 0.257″ | Cutting Edge Material | Carbide |
| Drill Bit Size / Cutting Diameter (DC) - Metric | 6.53 mm | Tool Type | Carbide Dream Drill - 3xD |
| Length Group | 3xD | Measurement Type | Inch |
| Coating | RCH Coating | Series/List # | DTX414 |
| Applicable Material | | Steel | Cast Iron| | Usable Length (LU) | 42.86 mm |
| Connection Diameter Machine Side (DCONMS) | 6.53 mm | Length Chip Flute (LCF) | 42.86 mm |
| Coolant Supply Property (CSP) | External | Overall Length (OAL) | 82.95 mm |
| Point Angle (SIG) | 140 Degrees | Flute Count (NOF) | 2 |
| Point Length (PL) | 0.0468″ | Cutting Direction (HAND) | Right Hand |
| Functional Length (LF) | 42.86 mm | Shank Diameter Tolerance (TCDMM) | h6 |
| Flute Helix Angle (FHA) | 30 Degrees |
Product Features
| Country of Origin | S.Korea |
Shipping Info
Package Weight
0.077
