7501 M10 × 1.50 S/P_D6

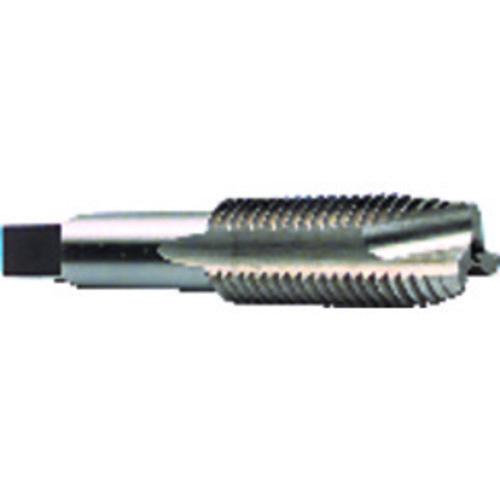

Spiral Point Tap; M10 × 1.5 mm ; 2-15/16″ OAL ; 3 FL ; HSS ; Uncoated ; D6 ; Series 7501
| Thread Standard | NC | Flute Count (NOF) | 3 |
| Thread Size | M10 × 1.5 | Cutting Edge Material | HSS |
| Thread Diameter Size (TDZ) | M10 | Connection Diameter Machine Side (DCONMS) | 0.381″ |
| Thread Pitch (TP) | 1.5 mm | Thread Cutting Part Length (THL) | 1-1/4″ |
| Thread Tolerance Class (TCTR) | D6 | Cutting Direction (HAND) | Right Hand |
| Usable Length (LU) | 1-1/4″ | Coolant Supply Property (CSP) | External |
| Overall Length (OAL) | 2-15/16″ | Measurement Type | Metric |
| Chamfer | Plug | Series/List # | 7501 |
| Coating | Uncoated |
Product Features
| Country of Origin | USA |
Shipping Info
Package Weight
0.08
