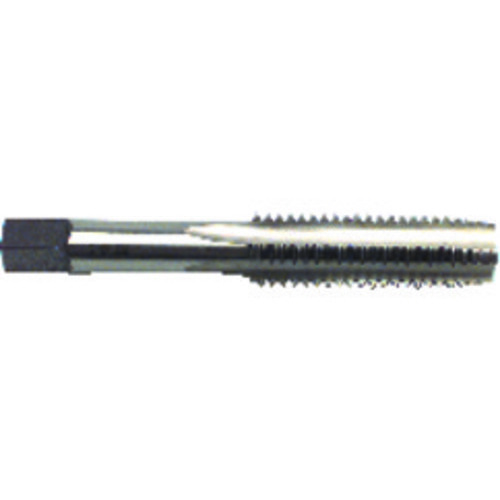

7500 M12 × 1.25 PLUG_D5
Straight Flute Tap; M12 × 1.25 mm ; 3-3/8″ OAL ; 4 FL ; HSS ; Uncoated ; D5 ; Series 7500
| Thread Diameter Size (TDZ) | M12 | Tool Type | General Purpose Tap |
| Thread Pitch (TP) | 1.25 mm | Chamfer | Plug |
| Thread Standard | NF | Coating | Uncoated |
| Overall Length (OAL) | 3-3/8″ | Drive Size (DRVS) | 0.275″ |
| Thread Cutting Part Length (THL) | 1-21/32″ | Flute Type | Straight |
| Usable Length (LU) | 1-21/32″ | Cutting Direction (HAND) | Right Hand |
| Connection Diameter Machine Side (DCONMS) | 0.367″ | Coolant Supply Property (CSP) | External |
| Flute Count (NOF) | 4 | Measurement Type | Metric |
| Cutting Edge Material | HSS | Series/List # | 7500 |
| Thread Tolerance Class (TCTR) | D5 | Thread Size | M12 × 1.25 |
Product Features
| Country of Origin | USA |
Shipping Info
Package Weight
0.13
