AXC0811500T6

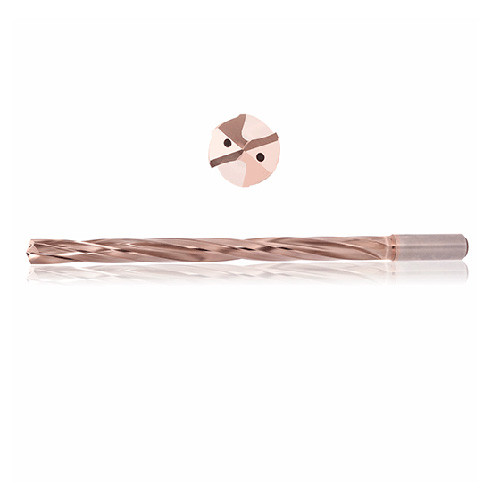

SC Drill; 11.5 mm Dia. × 12 mm Shank Dia. × 162 mm OAL × 114 mm LCF ; 135 Degrees ; 8xD ; ZrCN
| Drill Bit Size / Cutting Diameter (DC) | 11.5 mm | Shank Standard | h6 |
| Drill Bit Size / Cutting Diameter (DC) - Metric | 11.5 mm | Cutting Edge Material | Carbide |
| Length Group | 8xD | Tool Type | Solid Carbide Drill |
| Coating | ZrCN | Grade | H5010 ZircoPlus |
| Applicable Material | | Aluminum / Non-Ferrous Materials | | Measurement Type | Metric |
| Application | | Drilling | | Usable Length (LU) | 96.7 mm |
| Connection Diameter Machine Side (DCONMS) | 12 mm | Length Chip Flute (LCF) | 114 mm |
| Coolant Supply Property (CSP) | Coolant Thru | Overall Length (OAL) | 162 mm |
| Point Angle (SIG) | 135 Degrees | Flute Count (NOF) | 2 |
| Flute Helix Angle (FHA) | 15 Degrees | Feature | TRIPLE-MARGIN DRILL |
| Number of Teeth | 2 | Cutting Direction (HAND) | Right Hand |
| Shank Length (LS) | 48 mm | Body Material | Carbide |
| Shank Type | Round |
Product Features
| Family Description | 135° Point, Triple Margin, High Performance, Coolant ThroughFor Aluminum and Non Ferrous Material | ItemRemark | click here for cutting data |
| Country of Origin | Usa |
