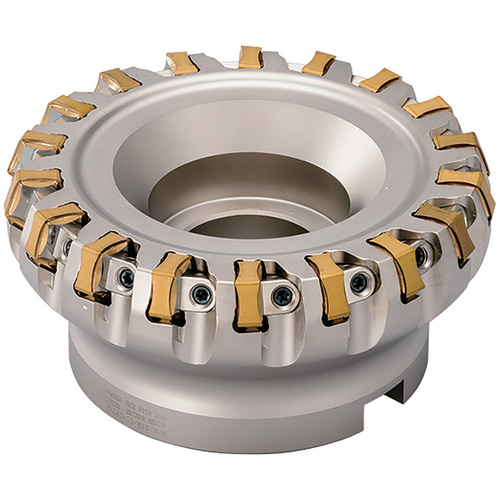

MFK 160R1116TM 160.00MM
Indexable Face Mill; 169 mm Dia. × 40 mm Shank Dia. × 63 mm OAL × 6 mm LOC ; 16 Inserts ; 70 Degrees ; Series MFK
| Cutting Diameter (DC/DCX) | 169 mm | Coolant Supply Property (CSP) | External |
| Cutting Diameter (DC) | 160 mm | Body Material | Steel |
| Cutting Diameter Maximum (DCX) | 169 mm | Cutting Direction (HAND) | Right Hand |
| Cutting Item Count (CICT) | 16 | Application | Facing | Cast Iron Milling |
| Depth of Cut Maximum (APMX) | 6 mm | Measurement Type | Metric |
| Connection Diameter Machine Side (DCONMS) | 40 mm | Tool Cutting Edge Angle (KAPR) | 70 Degrees |
| Overall Length (OAL) | 63 mm | Tool Type | Face Mill |
| Hub Diameter (DHUB) | 100 mm | Series/List # | MFK |
| Master Insert Identification (MIID) | PNMG11… | PNEG11… | PNEA11… |
Product Features
| Family Description | Alternate Manufacture # MFK160R1116TM | Country of Origin | Japan |
Shipping Info
Package Weight
11.0452
