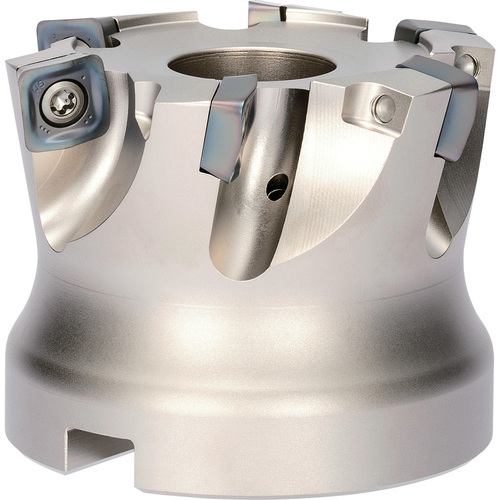

MFH-RAPTOR 3.0000
Indexable Face Mill; 3″ Dia. × 1″ Shank Dia. × 2.4803″ OAL ; 7 Inserts ; Series MFH-RAPTOR
| Cutting Diameter (DC/DCX) | 3″ | Usable Length (LU) | 0.1378″ |
| Cutting Diameter (DC) | 3″ | Body Material | Steel |
| Cutting Item Count (CICT) | 7 | Cutting Direction (HAND) | Right Hand |
| Connection Diameter Machine Side (DCONMS) | 1″ | Measurement Type | Inch |
| Overall Length (OAL) | 2.4803″ | Functional Length (LF) | 0.059″ |
| Master Insert Identification (MIID) | SOMT10… | Flange Diameter (DF) | 2-3/4″ |
| Ramping Angle Maximum (RMPX) | 1 Degrees | Tool Type | High Feed Face Mill |
| Coolant Supply Property (CSP) | Coolant Thru | Series/List # | MFH-RAPTOR |
Product Features
| Family Description | Alternate Manufacture # MFH3000R107T | Country of Origin | Japan |
Shipping Info
Package Weight
3.4
